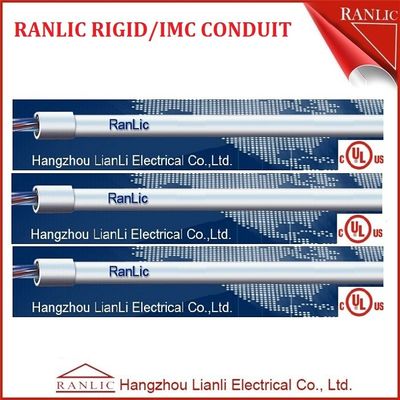

UL Listed Steel IMC Electrical Conduit 3" With Coupling 10 Feet Length
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Color: | White | Finish: | HOT DIP |
|---|---|---|---|
| Coupler: | Electro-Gal | Standard: | UL1242 |
| Size: | 1/2" To4" | Brand: | RANLIC OR OEM |
| Thread: | NPT | Cap Colore: | Red |
| UL File: | E476169 | ||
| High Light: | Galvanised Electrical Conduit,imc electrical pipe,IMC Electrical Conduit 10 Feet |
||
3"4" Steel IMC Conduit UL listed Hot Dip Galvanized With Coupling 10feet Length
UL LISTED FILE NO.: E476169
Specifications
imc conduit/galvanized imc conduit /imc steel pipe
1. OD:0.5inch-14inch
2. WT:1.0mm-10mm
3. Standard:GB/T,EN,ASTM
4. Payment:T/T
Quick Details:
Standard: BS 1387, BS 1139, BS EN10025, BS EN 3...
Grade: 10#-45#, 16Mn, A53-A369, ST35-ST52, Q195...
Grade: 20#, 16Mn, A53(A,B), St37, St52, St42, S...
Place of Origin: Tianjin China (Mainland)
Secondary Or Not: Non-secondary
Technique: ERW
Surface Treatment: Galvanized Pipe
Alloy Or Not: Non-alloy
Color: Silvery
Certification: ISO9001-2000
PRODUCT DETAILS
- Material: Galvanised steel
- Standard: UL1242 /ANSI C80.6
- Finish: Hot-dipped galvanised
- Size: 4" (or 1/2", 3/4", 1", 1-1/4" ,1-1/2", 2", 2-1/2", 3",3-1/2")
- Outside diameter: 113.3mm
- Wall thickness: 3.56mm
- Norinal weight :29.41KG/PC
- Length: 3.048m
- Pieces/bundle: woven bag with steel strap.
Charateristics and dimension:
| TRADE SIZE | ITEM No. | DIAMETER(±0.05mm) | STANDARD(UL) | THIN WALL | QUANTITY | GAL.UL | ||
| US | METRIC | INNER | OUTER | THICKNESS(±0.05) | THICK NONE UL | PER BUNDLE | THICK | |
| 1/2" | 16.00 | RL-E470 | 16.76mm | 20.70mm | 1.97mm | 1.60mm | 10*10ft | 40 micron |
| 3/4" | 21.00 | RL-E471 | 22.07mm | 26.26mm | 2.10mm | 1.80mm | 10*10ft | 40 micron |
| 1" | 27.00 | RL-E472 | 28.07mm | 32.77mm | 2.35mm | 1.80mm | 10*10ft | 40 micron |
| 1-1/4" | 35.00 | RL-E473 | 36.77mm | 41.59mm | 2.41mm | 1.80mm | 5*10ft | 40 micron |
| 1-1/2" | 41.00 | RL-E474 | 42.74mm | 47.82mm | 2.54mm | 2.10mm | 5*10ft | 40 micron |
| 2" | 53.00 | RL-E475 | 54.60mm | 59.93mm | 2.67mm | 2.10mm | 5*10ft | 40 micron |
| 2-1/2" | 63.00 | RL-E476 | 64.95mm | 72.57mm | 3.81mm | 2.10mm | 1*10ft | 40 micron |
| 3" | 78.00 | RL-E477 | 80.67mm | 88.29mm | 3.81mm | 3.20mm | 1*10ft | 40 micron |
| 3-1/2" | 91.00 | RL-E478 | 93.24mm | 100.86mm | 3.81mm | 3.20mm | 1*10ft | 40 micron |
| 4" | 103.00 | RL-E479 | 105.82mm | 113.44mm | 3.81mm | 3.20mm | 1*10ft | 40 micron |
c
