Product Details:
Payment & Shipping Terms:
|
| Material: | PVC PE & Q195 STEEL COIL | Colore: | Black Or White |
|---|---|---|---|
| PVC Part: | LOSH OR ABS | Coil Thickness: | 0.18mm-0.30mm |
| Package Meter: | 15meters Spool Up To 30 Meters | Pkg Methods: | Carton Pefilm |
| Container: | Recommend 40HQ | ||
| High Light: | Lsoh Pvc Coated Flexible Conduit,Low Smoke Pvc Coated Flexible Conduit,4" Pvc Coated Flexible Conduit |
||

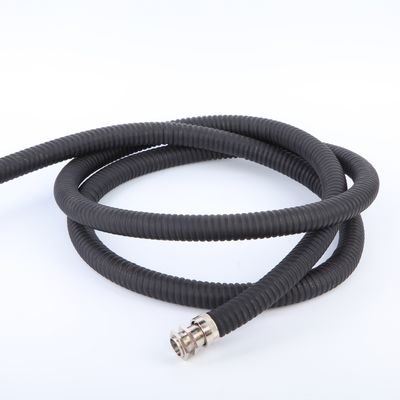

PVC COATED FLEXIBLE CONDUIT 3/8"-4"
Low Smoke & Zero Halogen Pvc coated flexible conduit
With BSI TEST, IP 67 TEST AND Firing test report, for high qulality and dangerous projects use
Description:
Flexible metal conduits for general purpose applications and installations in close quarters that require added
flexibility made from high-grade, hot dipped,galvanized low carbon steel.
Continuous interlocking metal strip design enhances flexibility a nd intergrity
Interior surface allows for easy wire fishing
3-hour through-penetration fire systems
Brand name: Ranlic
Applications:
Widely used for general electrical wiring where flexibility and mechanical protection are required.
Connect fm conduit to junction box
PVC(PU) Coated Flexible Conduit 1/2"(16mm)-4"(100mm)
Description:
Flexible metal conduits for general purpose applications and installations in close quarters that require added
flexibility made from high-grade, hot dipped,galvanized low carbon steel.
Continuous interlocking metal strip design enhances flexibility a nd intergrity
Interior surface allows for easy wire fishing
3-hour through-penetration fire systems
Brand name: Ranlic
Applications:
Widely used for general electrical wiring where flexibility and mechanical protection are required.
Connect fm conduit to junction box
Specifications:
| INSIDE DIA. | OUTSIDE DIA. | ITEM | PITCH | GAL.COIL | MIN.BEND | STANDARD | |
| Size | MM | MM | CODE | MM | THICKNESS | RADIUS | PACKAGE METERS |
| 3/8" | 12mm | 16.30mm | RL-F60 | 4.70mm | 0.20mm | 50 Degree | 100 Meters |
| 1/2" | 15mm | 19.70mm | RL-F61 | 5.70mm | 0.20mm | 65 Degree | 50 Meters |
| 3/4" | 20mm | 25.10mm | RL-F62 | 6.40mm | 0.22mm | 75 Degree | 30 Meters |
| 1" | 25mm | 31.00mm | RL-F63 | 8.70mm | 0.22mm | 100 Degree | 30 Meters |
| 1-1/4" | 32mm | 40.30mm | RL-F64 | 10.50mm | 0.30mm | 125 Degree | 15 Meters |
| 1-1/2" | 38mm | 45.80mm | RL-F65 | 11.40mm | 0.31mm | 150 Degree | 15 Meters |
| 2" | 50mm | 57.10mm | RL-F66 | 11.40mm | 0.35mm | 175 Degree | 10 Meters |
| 2-1/2" | 63mm | 70.80mm | RL-F67 | 14.20mm | 0.45mm | 200 Degree | 10 Meters |
| 3" | 75mm | 85.90mm | RL-F68 | 14.20mm | 0.50mm | 225 Degree | 5 Meters |
| 3-1/2" | 83mm | 95.55mm | RL-F69 | 14.20mm | 0.60mm | 230 Degree | 5 Meters |
| 4" | 100mm | 108.50mm | RL-F70 | 14.20mm | 0.60mm | 275 Degree | 5 Meters |
Competitive Advantage:
Quick delivery: 10 days for one 40ft container
Compititve price
PVC Coated Gi Flexible Conduit With Adaptor
| 12mm ,16mm,20mm,25mm 32mm,38mm,50mm | inside steel use 0.20mm or more thicker |
| black pvc or grey colore | pvc can be low smoke or normal pvc material |
Descriptions of high temperature flexible metal cable conduit
1) Hot-dip/electro-gal.steel coil material; work temp: -25 to 350 degree.
2) All package meters available 15m,25m,30m and 100feet.
3) For general wiring installation provides for good flexible bending & vibration.
1.Q: What kind of material you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, Zinc, etc.
2.Q: What kind of standard you are following?
A: We are producing following by UL standard, most popular around the world,
of course, we also have customized products.You can provide your specification.
3.Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.
4.Q: How many days can you deliver the order?
A: Normally after deposit or L/C 20-30 days, actually it depends on your request.
5.Q: What about the payment?
A: We can accept L/C, T/T, D/P and trusted payment methods.
6.Q: Do you provide samples?
A: yes, we can offer the standard product sample freely, but we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, FedEx, etc. to send samples, you can inform us in advance to prepare.
7.Q: Are you a trading company or manufacturing company?
A: Both we are, we have ten years experiences in foreign trading business and more than five years in electrical conduit industry. Of course, we are always expanding our business.
8.Q: How can you guarantee your products?
A: we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure every order carefully. In some special cases, we will give some discounts as a solution.
9.Q: How about your capability in manufacturing?
Based on reasonable price, good quality, great after service, and Workers' Passion and Effort, we are capable of manufacturing 6000 tons of steel conduit per year and 4000 tons of die casting and steel accessories anually.
Choosing us is the best choice.
