| Finish: | Polishing | Color: | White |
|---|---|---|---|
| Termianl: | One Way To Four Way | Use For: | BS4568 BS31 EMT IMC |
| EMT IMC: | Especially In Vietaname | Come With: | Without Cover |
| Brand: | RANLIC | ||
| High Light: | 50mm Painting Conduit Junction Box,Galvanized Conduit Junction Box,Malleable Inspection Conduit Junction Box |
||

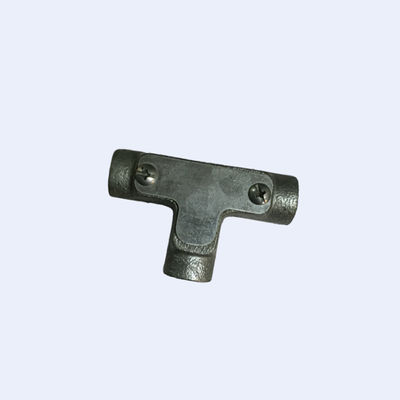

Malleable Inspection Tee With Cover , Hot Dip Galvanized Silver Colore 20mm To 50mm Painting Finish Available
25mm Malleable Inspection Tee electrical Conduit Junction Box With Cover , Hot Dip Galvanized
20mm up to 50mm whole size available
One way to four way all available
Our molds all opened seperately to make the products
surface smooth and without bur
| SIZE | |
| 20mm 1 Way | HOT DIP |
| 25mm 1 Way | HOT DIP |
| 32mm 1 Way | HOT DIP |
| 38mm 1 Way | HOT DIP |
| 50mm 1 Way | HOT DIP |
| 20mm 2 Way | HOT DIP |
| 25mm 2 Way | HOT DIP |
| 32mm 2 Way | HOT DIP |
| 38mm 2 Way | HOT DIP |
| 50mm 2 Way | HOT DIP |
| 20mm 3 Way | HOT DIP |
| 25mm 3 Way | HOT DIP |
| 32mm 3 Way | HOT DIP |
| 38mm 3 Way | HOT DIP |
| 50mm 3 Way | HOT DIP |
| 20mm 4 Way | HOT DIP |
| 25mm 4 Way | HOT DIP |
| 32mm 4 Way | HOT DIP |
| 38mm 4 Way | HOT DIP |
| 50mm 4 Way | HOT DIP |
| 20mm U Way | HOT DIP |
| 25mm U Way | HOT DIP |
| 32mm U Way | HOT DIP |
| 38mm U Way | HOT DIP |
| 50mm U Way | HOT DIP |
| 20mm Y Way | HOT DIP |
| 25mm Y Way | HOT DIP |
| 32mm Y Way | HOT DIP |
| 20mm H Way | HOT DIP |
| 25mm H Way | HOT DIP |
| 32mm H Way | HOT DIP |
| 20mm Loop In Box - 1 Hole | HOT DIP |
| 25mm Loop In Box - 1 Hole | HOT DIP |
| 32mm loop in box - 1 hole | HOT DIP |
| 20mm Loop In Box - 2 hole,3 or 4 holes | HOT DIP |
| 25mm Loop In Box - 2 Hole,3 or 4 holes | HOT DIP |
| 20mm 1 Way Back Outlet/ Entry | HOT DIP |
| 25mm 1 Way Back Outlet/ Entry | HOT DIP |
| 32mm 1 Way Back Outlet/ Entry | HOT DIP |
| 20mm 2 Way Back Outlet/ Entry | HOT DIP |
| 25mm 2 Way Back Outlet/ Entry | HOT DIP |
| 20mm Back Outlet/ Entry | HOT DIP |
| 25mm Back Outlet/ Entry | HOT DIP |
| 32mm Back Outlet/ Entry | HOT DIP |
| 20MM-1 extension pattern circular box | HOT DIP |
| 20MM-2 extension pattern circular box | HOT DIP |
| 25MM-1extension pattern circular box | HOT DIP |
| 20MM ball & socket earthed | HOT DIP |
| 25MM ball & socket earthed | HOT DIP |
Characters & Diemension:
| ITEM CODE | MATERIAL | SIZE | USED FOR |
| RL-A810 | malleable steel | 3/4" 20MM | BS4568 & BS31 & EMT &IMC |
| RL-A811 | malleable steel | 1" 25MM | BS4568 & BS32 & EMT &IMC |
Other Junction Boxes:
One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, branch two way box (U), branch three way box (Y), twin through way box (H) available
Description:
RANLIC BS4568/BS31 Aluminum Circular Junction Box
Marking: RANLIC
Material: aluminum
Standard: BS4568/BS31/EMT/IMC/RIGID
Size: 20mm, 25mm,, 3/4”, 1”
General:
Used for bs4568 and bs31 class 3 conduit pipe
Class 4 can not use is because alu. will react with Zinc hot dip
Ranlic brand is engraved on the products
Material: Aluminum Alloy
Standard: BS4568/BS31(for british standard countires)
EMT & IMC Conduit used in vietanam only
Size: 20mm, 25mm 3/4”, 1”
K.O.: one way to four way, inspection bend, inpsection elbow and TEE
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service
Applications:
RANLIC BS4568/BS31 Aluminum Circular Junction Box
to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.
Package: following the pictures below
