12 14AWG Wire Conduit Junction Box

China 12 14AWG Wire Conduit Junction Box supplier
12 14AWG Wire Conduit Junction Box supplier 12 14AWG Wire Conduit Junction Box supplier 12 14AWG Wire Conduit Junction Box supplier 12 14AWG Wire Conduit Junction Box supplier 12 14AWG Wire Conduit Junction Box supplier 12 14AWG Wire Conduit Junction Box supplier

Large Image :  12 14AWG Wire Conduit Junction Box

Product Details:

Place of Origin: CHINA
Brand Name: AXWILL & RANLIC
Certification: UL LISTED
Model Number: 87004

Payment & Shipping Terms:

Minimum Order Quantity: 10000 SET
Price: 0.6USD
Packaging Details: CARTONS
Delivery Time: 25 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10000000 PER QUARTER
Contact Now
Detailed Product Description
Function: Pre Fabrication Usage: RUFFIN
Brand: RanLic Or OEM
High Light:

12AWG Wire Conduit Junction Box

,

14AWG Wire Conduit Junction Box

,

White Color Conduit Junction Box

13A Electrical Conduit Junction Box Outlet Socket PVC White Colore 12 14AWG Wire

Ruff-In Prefab Plaster Ring Tool Free Install Save Time And Efficiancy White Socket Switch Plug

4 Gang Sleeve Extender Install With Socket Plug And Electrical Wire 12 14 AWG

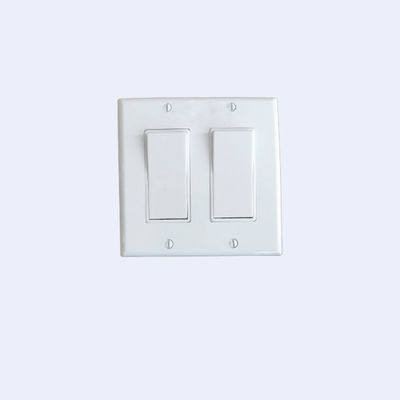

2 Gang Wall Switch Assembly With Electrical Wire Plaster Ring Quick Fix Wall White Colore 12 AWG Cable Fix

Feature & Benefits For Prefabrication
1) All the basic assembly will leave for us,end user just use one hand and tool less fix
2) brackets accommodate multiple setups
3) comes with grounnd pigtail assembled
4) ideal for repective and none repetitive floor layouts
5) Reduce material storage,waste and handling
6) Devices are installed,side wire,taped and fitted with quick connect feature
7) Universal brackets have built in standoffs for up to 6" walls
8) brackets designed to stay together when mud ring is removed
9) The contractor can provide his own cable or buy custom-cut whips

Item Listed for prefabrication Junction box

2-1/8"deep outlet box and cover 5/8" deep for one gang Wire with UL listed flexible conduit 3/8" or 1/2"
2-1/8" deep outlet box and cover 3/4" deep for two gang Cable Fixed AC MC

12 14AWG Wire Conduit Junction Box



12 14AWG Wire Conduit Junction Box
Universal Mounting Brackets Fixed Box Listed

Universal Mounting Bracket 2-1/8" deep welded box,5/8" one gang mud ring The cable should be supplied by importer
Universal Mounting Bracket 2-1/8" deep welded box,3/4"two gang mud ring All trouble things leave in our factory with whole set shipment

12 14AWG Wire Conduit Junction Box

12 14AWG Wire Conduit Junction Box12 14AWG Wire Conduit Junction Box12 14AWG Wire Conduit Junction Box

Type Of Junction-Box Use in assembly Type of bracket used in assembly
3-4" square 1-1/2" deep box 18" tall tick bracket
4-4" square 2-1/8" deep box 24" tall tick bracket
5-4-11/16" sq 2-1/8" deep box uni-fab standard bracket

type of mud ring:
one gang or two gang

specification of corrent of device
1: 15amp 2: 20amp 3: 30amp 4: 40 amp 5: 50 amp

Specify grade of device:
1: COMMERCIAL
2: HOSPITAL
3: INDUSTRIAL
4: RESIDENTIAL

FLEXIBLE REDUCE WALL THICKNESS STANDARD UL LISTED

INSIDE DIA. OUTSIDE DIA. ITEM PITCH GAL.COIL MIN.BEND STANDARD
IN. MM MM CODE MM THICKNESS RADIUS PACKAGE METERS
3/8" 12mm 15.50mm RL-F33-12 4.70mm 0.30mm 33 Degree 100 Meters
1/2" 15mm 20.00mm RL-F33-15 5.70mm 0.35mm 38 Degree 50 Meters
3/4" 20mm 25.00mm RL-F33-20 6.40mm 0.35mm 45 Degree 30 Meters
1" 25mm 30.30mm RL-F33-25 8.70mm 0.35mm 55 Degree 30 Meters
1-1/4" 32mm 38.00mm RL-F33-32 10.50mm 0.40mm 62 Degree 15 Meters
1-1/2" 38mm 45.00mm RL-F33-38 11.40mm 0.40mm 90 Degree 15 Meters
2" 50mm 58.00mm RL-F33-50 11.40mm 0.40mm 110 Degree 10 Meters
2-1/2" 63mm 74.50mm RL-F33-63 14.20mm 0.45mm 130 Degree 10 Meters
3" 75mm 83.50mm RL-F33-75 14.20mm 0.50mm 145 Degree 5 Meters
3-1/2" 83mm 95.55mm RL-F33-83 14.20mm 0.60mm 160 Degree 5 Meters
4" 100mm 108.50mm RL-F33-100 14.20mm 0.60mm 210 Degree 5 Meters




STEEL OUTLET BOX UL LISTED STANDARD
1) HANDY UTILITY

Catalog Knockouts Wall Hight Quantity Weight (kgs)
Number Side Bottom Thickness Inch/mm Per Carton Per Carton
886620 8*1/2" 3*1/2" 1.60mm ±0.20 1-1/2"/38mm 50 9.05±1.00
886621 8*1/2" 3*1/2" 1.60mm ±0.20 1-7/8"/47mm 50 9.90±1.00
88662C 6*1/2"& 2*1/2"in 3/4" 2*1/2"&1*3/4" 1.60mm ±0.20 1-7/8"/47mm 50 9.90±1.00


2) SQUARE BOX

Catalog Knockouts Wall Hight Quantity Weight (kgs)
Number Side Bottom Thickness Inch/mm Per Carton Per Carton
88630 8*1/2"&4*3/4" 3*1/2"&2*3/4" 1.60mm ±0.20 1-1/2"/38mm 50 13.75±1.00
88631 8*1/2"&4*3/4" 3*1/2"&2*3/4" 1.60mm ±0.20 2-1/8"/54mm 50 17.25±1.00


3) Octagon

Material:G60 Steel(Pre-Glavanized) Catalog Knockouts Wall Hight Quantity Weight (kgs)
Finish: Drawn     Number Side Bottom Thickness Inch/mm Per Carton Per Carton
Application:     88641 4*1/2" 5*1/2" 1.60mm ±0.20 1-1/2"/38mm 50 15.50±1.00
For use with conduit pipe 88640 4*1/2" 5*1/2" 1.60mm ±0.20 2-1/8"/54mm 50 18.50±1.00
      K.O.Also can be 4*3/4" 3*1/2" 2*3/4"



insulated malleable and zinc bushing listed catalog
