| Finish: | Hot Dip | Material: | Malleable Iron |
|---|---|---|---|
| Thread: | NPT Thread | Type: | LB LL LR C T |
| USED FOR: | RIGID CONDUIT | ||
| High Light: | Malleable Iron Junction Box Conduit,Hot Dip Galvanized Junction Box Conduit,Darcromate Finish Junction Box Conduit |
||

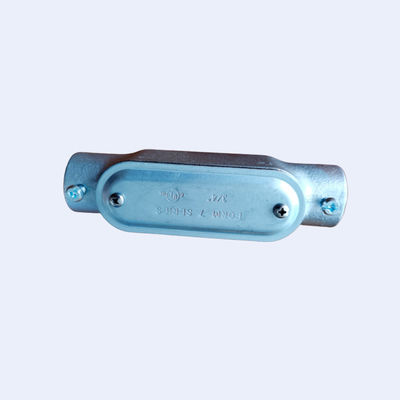

1-1/2" Malleable Iron Junction Box Conduit Body 7 Seires Cover Darcromate Finish Npt Threads LB LR LL C T Type
1-1/2" Malleable Iron Junction Box Conduit Body 7 Seires Cover Darcromate Finish Npt Threads LB LR LL C T Type
Application
1. For threaded rigid conduit or EMT.
2. Provides access to the interior of the raceway for wire pulling splicing,(with a limitions as specified in the National Electrical Code),and maintance,for covers and gasket
3. Trade size:1/2"-4"
4. other type LL(Left) LB(Bent) LR(Right) C (stright),T shape are available
1) Hot dip galvanized to insure 30 years use life
2) For IMC & RIGID conduit pipe NPT threads
3) Sizes:1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/2"4"4)
Malleable Iron Conduit body
LR LL LB C T style conduit bodies are attached to threaded rigid or IMC/RIGID conduits when a change of direction is required.
Their removable cover makes general maintenance and wire pulling and feed through easy and convenient.
Commonly used for electrical service entrance wires or as an economical convenience box when extra wire capacity is needed.
LR style conduit bodies save time and money by eliminating costly bending of large conduits in order to change the directions of conduit runs.
They allow the installer to easily bend wires into the smooth turns.
They are zinc electro platedand have a water-tight gasket toensure a weatherproof installation.
Features:
Malleable Iron Conduit body C,LB,LL,LR T style conduit bodies are attached to threaded rigid or IMC conduits when a change of direction is required. Their removable cover makes general maintenance and wire pulling and feed through easy and convenient. Commonly used for electrical service entrance wires or as an economical convenience box when extra wire capacity is needed. C style conduit bodies save time and money by eliminating costly bending of large conduits in order to change the directions of conduit runs. They allow the installer to easily bend wires into the smooth turns. They are zinc electro plated and have a water-tight gasket to ensure a weatherproof installation. - See more at: http://www.okailfittings.com/Malleable-Iron-Conduit-Body-C-Style-p94.html#sthash.pQI4WT66.dpuf
Characteristics & Dimension:
| RANLIC CODE | Size | Material | Products Name |
| RL-LB201M | 1/2" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB202M | 3/4" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB203M | 1" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB204M | 1-1/4" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB205M | 1-1/2" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB206M | 2" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB207M | 2-1/2" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB208M | 3" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB209M | 3-1/2" | Malleable Iron | LB Malleable Rigid Conduit Body |
| RL-LB210M | 4" | Malleable Iron | LB Malleable Rigid Conduit Body |
