|TYPE:||PREFAB||Cable Range:||3/8" Or 1/2"|
|Function:||Make Your Job Easy,save Your Time||Model:||FS009|
|Type:||Outlet Box Support|
16" Telescoping Screw Gun Box Bracket,
Zinc Plated Telescoping Screw Gun Box Bracket

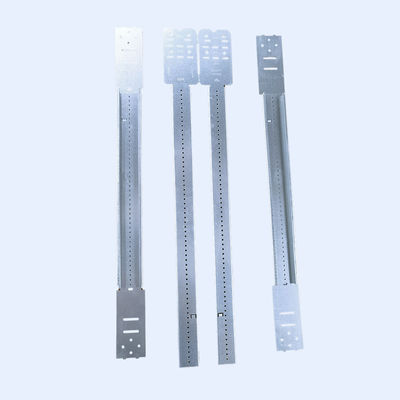

Telescoping Screw Gun Box Bracket 16" 24" Length Zinc Plated 0.7mm Coil 1-1/2 In And 2-1/8 In D Box, 11 To 18 In Stud
14-1/4" - 24-1/4" Telescoping Screw Gun Box Support Bracket
•Notched and marked allows for easy identification and bending • Pilot holes for easy box attachment • Adjustable for non standard stud spacing • Expandable: 14-1/4"-24-1/4" • Box Depth: 1-1/2", 2-1/8", 2-1/2"
Applications • Axwill telescoping box bracket allows easy installation of electrical boxes between wall studs, requires only a screw gun to install Standard Material • Galvanized steel
Cable Range: 3/8" or 1/2"
This design to make your job easy and save your time
The telescoping box bracket fits a range of stud spacings that mounts with just two screws, then snap on the tool-less box mounting clip to quickly attach your box.
Ask for the B-Line series AX2-16T or AX2-24T bracket and the BB2TSC mounting clip on your next order.
Application: These wall support brackets are used to support electrical boxes from ﬂoor or concrete forms.
They also help prevent electrical boxes from being pushed back into the wall cavity during drywall installation.
Advantages: fold back stabilizers ensure an easy and secure electrical box installation in wall applications. They are designed to mount square boxes on walls 12”to 24” above the ﬂoor. ﬂoor and wall kick plate support brackets have box screws that are exposed after mounting so the conduits can be secured from the front of the box opening. Additionally, their multiple heights accommodate a variety of fnished ﬂoor heights.
Application: These multi-box mounting brackets are used to secure conduit boxes in stud walls.
Advantages: Multi box mounting brackets allow the installer to quickly and easily mount 4”, 4-11/16” or 6”square conduit boxes in stud walls.
|16" length||0.80mm±0.05mm||pre galvanized|
|24" length||0.80mm±0.05mm||pre galvanized|
|22" length"||0.80mm±0.05mm||pre galvanized|
Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand
Not all electrical box supports are created equal.
When it comes to rigid, easy to install electrical box supports, offers a wide variety of AXWILL series electrical boxes that help reduce installation complexity.
From floor-mount to wall-mount box supports, we offer a variety of options to mount just one to up to 4 or 5 boxes, and every design is rigid enough to withstand the rigors of drywall installation.
1. Pictures of emt conduit box
2. Descriptions of emt conduit box
1) Using for EMT conduit cover for octangular / square / rectangle box.
2) All using automatic punching machine & molds, precise for each products.
3) K.O.S can make mixed size or only one size.
4) C/O cover and screws. Can make the bottom side hole as the terminal hole
5) Come without terminal brass part unless ordered, can be make one or two adjustable lug, thickness from 0.60mm to 1.60mm.
