Product Details:
Payment & Shipping Terms:
|
Finish: | Hot Dip Or Painting | Colore: | White |
---|---|---|---|
Terminal: | Extension Ring | Use For: | BS4568 BS31 GI Conduit |
EMT IMC: | Especially In Vietaname & Indonisia | Come With: | Without Cover & Gaskets |
Brand: | RANLIC Or OEM | ||
High Light: | Hot Dip Circular Junction Box,4 Hole Threaded Circular Boxes,BS4568 Conduit Circular Junction Box |

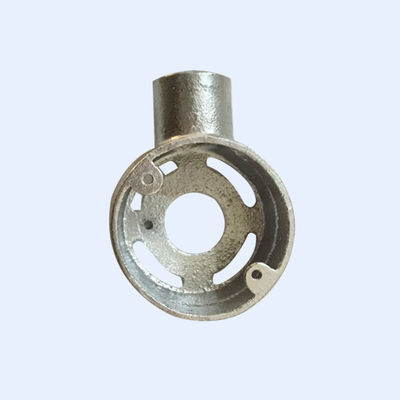

25mm Looping-In Circular Boxes From One Hole To Four Hole Threaded Hot Dip Galvanized 25MM Deep
One way,two way,angle way and four way all available
We have all sizes from 20mm to 50 mm
All the malleable circular box C/W cover and gaskets expect requriement when ordered
Description:
RANLIC BS4568/BS31 Mallable Circular Terminal Box
Marking: RANLIC
Material: Malleable Iron
Standard: BS4568/BS31
Size: 20mm to 50mm( bs4568 conduit) 3/4" to 2"
axwill conduit boxes are custom manufactured from malleable iron. Malleable iron after casting is subjected to annealing which is a controlled heating and cooling exercise - among other reactions, this process removes carbon from the casting. It is the presence of carbon in cast iron which causes its brittleness and removing an amount makes the casting stronger or more "malleable"
Malleable and cast iron look very similar, thus the choice between malleable and cast iron is often based on economy rather than properties. In the application of conduit fittings it is important that they do not crack when faced with any external impact because it will compromise the entire cable management systems grounding conductor and EMI shielding capabilities as well as leave the encased circuit damaged or exposed.
After casting, annealing and cooling, axwill conduit boxes are hot dipped galvanised in a molten zinc bath. HDG is widely regarded as offering the most superior of corrosion protection available because the zinc coating is very difficult to compromise.
The strictest quality control ensures axwill malleable cast iron conduit boxes are all precision threaded. This ensures a straight continuous conduit line. The perpendicular thread finish also facilitates minimum installation times. |
General:
Used for bs4568 and bs31 class 4 conduit pipe
Hot dip galvanized durable and never rusted,Painting also available
Ranlic brand is engraved on the products, also can make OEM
Material: Malleable Iron
Standard: BS4568:PART 1 1970 BS EN 50086
BS EN 61386
With tapped hold in base for earthing screw,supplied w/o cover and screws unless ordered
Size: 20mm-50mm
K.O.: one way to four way, inspection bend, inpsection elbow and TEE
Characters & Diemension:
ITEM CODE | MATERIAL | FINISH | SIZE | USED FOR |
RL818-20 | Malleable Iron | Hot Dip/Painting | 20mm | Extension of Terminal Box |
RL818-25 | Malleable Iron | Hot Dip/Painting | 25mm | Extension of Terminal Box |
RL818-32 | Malleable Iron | Hot Dip/Painting | 32mm | Extension of Terminal Box |
RL818-38 | Malleable Iron | Hot Dip/Painting | 40mm | Extension of Terminal Box |
RL818-50 | Malleable Iron | Hot Dip/Painting | 50mm | Extension of Terminal Box |
Other Terminal Box(Circular Box) Available
One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, branch two way box (U), branch three way box (Y), twin through way box (H) available
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service
Applications:
RANLIC BS4568/BS31 Malleable Circular Box
to protect conductors in threaded bs4568 class 4 conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.
We supplier only the high quality products, most of our Malleable circular box weight according to BS4568 61386 stipulated . two screws of the terminal box always keep same
distence in order when put on the sockets can not use
20mm 25mm Malleable Circular Box Back Outlet/Entry Three Four And Angle Way For bs4568 Conduit
60.3mm Internal diameter. 20mm Boxes – min 25mm deep, 25mm boxes – min 28mm deep.
Tapped M4 at 50.8mm centres, with tapped hole in base for earthing screw.
Supplied without covers or earthing screws unless ordered.
One way,two way,angle way and four way all available
We have all sizes from 20mm to 50 mm
All the malleable circular box C/W cover and gaskets expect requriement when ordered
Description:
RANLIC BS4568/BS31 Mallable Circular Terminal Box
Marking: RANLIC
Material: Malleable Iron
Standard: BS4568/BS31/IMC/RIGID
Size: 20mm to 50mm( bs4568 conduit) 3/4" to 2"(imc rigid conduit)
General:
Used for bs4568 and bs31 class 4 conduit pipe
Hot dip galvanized durable and never rusted,Painting also available
Ranlic brand is engraved on the products, also can make OEM
Material: Malleable Iron
Standard: BS4568:PART 1 1970 BS EN 50086
BS EN 61386
With tapped hold in base for earthing screw,supplied w/o cover and screws unless ordered
Size: 20mm-50mm
K.O.: one way to four way, inspection bend, inpsection elbow and TEE
Characters & Diemension:
ITEM CODE | MATERIAL | FINISH | SIZE | USED FOR |
RL111-20 | Malleable Iron | Hot Dip/Painting | 20mm | GI CONDUIT BS4568 CLASS 4 |
RL111-25 | Malleable Iron | Hot Dip/Painting | 25mm | GI CONDUIT BS4568 CLASS 4 |
RL111-32 | Malleable Iron | Hot Dip/Painting | 32mm | GI CONDUIT BS4568 CLASS 4 |
RL111-38 | Malleable Iron | Hot Dip/Painting | 40mm | GI CONDUIT BS4568 CLASS 4 |
RL111-50 | Malleable Iron | Hot Dip/Painting | 50mm | GI CONDUIT BS4568 CLASS 4 |
Other Terminal Box(Circular Box) Available
One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, branch two way box (U), branch three way box (Y), twin through way box (H) available
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service
Applications:
RANLIC BS4568/BS31 Malleable Circular Box
to protect conductors in threaded bs4568 class 4 conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.
We supplier only the high quality products, most of our Malleable circular box weight according to BS4568 61386 stipulated . two screws of the terminal box always keep same
distence in order when put on the sockets can not use
Wish you have a good day and everything goes well.
Axwill is a professional manufacture of EMT/IMC/RSC Conduit & 90% Normal related accessocires together with prefabrication steel box brackets and conduit junction box,struct channel, threaded rod with 15 years history. And our factory cooperated with many world famous brands. We have Abundant OEM experience serving USA UK UAE upscale market with BSI/UL/ISO9001 certificate.
