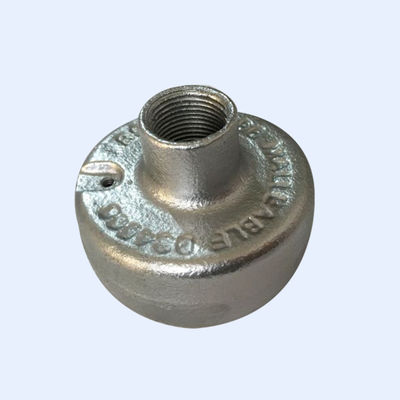

One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized

Certification
Good quality IMC Electrical Conduit for sales
Good quality IMC Electrical Conduit for sales
I'm Online Chat Now

One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized

China One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier
One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized supplier

Large Image :  One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized

Product Details:

Place of Origin: HANGZHOU,CHINA
Brand Name: RANLIC
Certification: ISO9001
Model Number: RL818

Payment & Shipping Terms:

Minimum Order Quantity: 3000 nos
Price: negotiation
Packaging Details: Inner CTN,Main CTN
Delivery Time: 30 days
Supply Ability: 20000 pieces per day
Detailed Product Description
Finish: Hot Dip Or Painting Colore: White
Terminal: Extension Ring Use For: BS4568 BS31 GI Conduit
EMT IMC: Especially In Vietaname & Indonisia Come With: Without Cover & Gaskets
Brand: RANLIC Or OEM
High Light:

Galvanized Conduit Junction Box

,

28MM Depth Conduit Junction Box

,

One Way Conduit Junction Box

40mm One Way Back OutletS Circular Boxes 28MM Depth Metric Thread Come BS4568 61386 2015 Standard Hot Dip Galvanized
 1-1/2" ALSO AVAILABLE
 Kitemark bsi Ceritified
One way,two way,angle way and four way YHU Backout circular boxes all available

We have all sizes from 20mm to 50 mm
All the malleable circular box C/W cover and gaskets expect requriement when ordered

Description:
RANLIC BS4568/BS31 Mallable Circular Terminal Box
Marking: RANLIC
Material: Malleable Iron
Standard: BS4568/BS31
Size: 20mm to 50mm( bs4568 conduit)   3/4" to 2"


General:
Used for bs4568 and bs31 class 4 conduit pipe

Hot dip galvanized durable and never rusted,Painting also available

Ranlic brand is engraved on the products, also can make OEM
Material: Malleable Iron
Standard: BS4568:PART 1 1970 BS EN 50086

                                                    BS EN 61386
With tapped hold in base for earthing screw,supplied w/o cover and screws unless ordered
Size: 20mm-50mm
 K.O.: one way to four way, inspection bend, inpsection elbow and TEE

Characters & Diemension:

ITEM CODE MATERIAL FINISH SIZE USED FOR
RL818-20 Malleable Iron Hot Dip/Painting 20mm Extension of Terminal Box
RL818-25 Malleable Iron Hot Dip/Painting 25mm Extension of Terminal Box
RL818-32 Malleable Iron Hot Dip/Painting 32mm Extension of Terminal Box
RL818-38 Malleable Iron Hot Dip/Painting 40mm Extension of Terminal Box
RL818-50 Malleable Iron Hot Dip/Painting 50mm Extension of Terminal Box



Other Terminal Box(Circular Box) Available

One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, branch two way box (U), branch three way box (Y), twin through way box (H) available
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
   customer's warehouse to improving our service



Applications:
RANLIC BS4568/BS31 Malleable Circular Box
to protect conductors in threaded bs4568 class 4 conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.




Note:
1. With tapped hole in base for earthing screw.
2. Supplied with covers and fixing screws if required
3. Order 3/4"-2"  when using with rigid steel conduit
4. Order 20mm-50mm  when using with BS4568 Conduits.
5. BS31 boxes also available in aluminum die casting & finish polishing
6. Box Covers are available 0.80mm to 1.2mm thickness, finish pre-galvanized
Electro-galvanized or Hot dip galvanized


We supplier only the high quality products, most of our Malleable circular box weight according to BS4568 61386 stipulated . two screws of the terminal box always keep same
distence in order when put on the sockets can not use

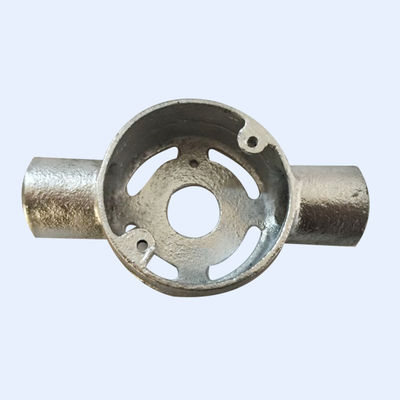

20mm 25mm Malleable Circular Box Back Outlet/Entry Three Four And Angle Way For bs4568 Conduit

60.3mm Internal diameter. 20mm Boxes – min 25mm deep, 25mm boxes – min 28mm deep.
Tapped M4 at 50.8mm centres, with tapped hole in base for earthing screw.
Supplied without covers or earthing screws unless ordered.


One way,two way,angle way and four way all available
We have all sizes from 20mm to 50 mm
All the malleable circular box C/W cover and gaskets expect requriement when ordered

Description:
RANLIC BS4568/BS31 Mallable Circular Terminal Box
Marking: RANLIC
Material: Malleable Iron
Standard: BS4568/BS31/IMC/RIGID
Size: 20mm to 50mm( bs4568 conduit) 3/4" to 2"(imc rigid conduit)


General:
Used for bs4568 and bs31 class 4 conduit pipe

Hot dip galvanized durable and never rusted,Painting also available

Ranlic brand is engraved on the products, also can make OEM
Material: Malleable Iron
Standard: BS4568:PART 1 1970 BS EN 50086

BS EN 61386
With tapped hold in base for earthing screw,supplied w/o cover and screws unless ordered
Size: 20mm-50mm
K.O.: one way to four way, inspection bend, inpsection elbow and TEE

Characters & Diemension:


ITEM CODE MATERIAL FINISH SIZE USED FOR
RL111-20 Malleable Iron Hot Dip/Painting 20mm GI CONDUIT BS4568 CLASS 4
RL111-25 Malleable Iron Hot Dip/Painting 25mm GI CONDUIT BS4568 CLASS 4
RL111-32 Malleable Iron Hot Dip/Painting 32mm GI CONDUIT BS4568 CLASS 4
RL111-38 Malleable Iron Hot Dip/Painting 40mm GI CONDUIT BS4568 CLASS 4
RL111-50 Malleable Iron Hot Dip/Painting 50mm GI CONDUIT BS4568 CLASS 4


Other Terminal Box(Circular Box) Available

One way box-terminal box. Two way box-Angle box, Two way box-Through box, Three way box-Tee box, four way box-intersection box, branch two way box (U), branch three way box (Y), twin through way box (H) available
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service

One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized

Applications:
RANLIC BS4568/BS31 Malleable Circular Box
to protect conductors in threaded bs4568 class 4 conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system change.




Note:
1. With tapped hole in base for earthing screw.
2. Supplied with covers and fixing screws if required
3. Order 3/4"-2" when using with rigid steel conduit
4. Order 20mm-50mm when using with BS4568 Conduits.
5. BS31 boxes also available in aluminum die casting & finish polishing
6. Box Covers are available 0.80mm to 1.2mm thickness, finish pre-galvanized
Electro-galvanized or Hot dip galvanized


We supplier only the high quality products, most of our Malleable circular box weight according to BS4568 61386 stipulated . two screws of the terminal box always keep same
distence in order when put on the sockets can not use

One Way Conduit Junction Box 28MM Depth BS4568 Standard Hot Dip Galvanized

Wish you have a good day and everything goes well.

Axwill is a professional manufacture of EMT/IMC/RSC Conduit & 90% Normal related accessocires together with prefabrication steel box brackets and conduit junction box,struct channel, threaded rod with 15 years history. And our factory cooperated with many world famous brands. We have Abundant OEM experience serving USA UK UAE upscale market with BSI/UL/ISO9001 certificate.

WHY CHOOSE AXWILL:

1. We produce Raw material(Steel Coil ) by ourselves ,we can control the quality strictly
2. Original factory price (we produce steel coil by ourselves, That's why we can keep good quality and competitive price )
3. Fast delivery time(warehouse in Dubai,Qatar)
4. We are Mature supplier in UK, United States, Canada,Middle east ,Singapore ,Malaysia, Panama, Costa Rica,Clombia,Honduras,Dominicana Republic,Trinida&Tobacco ... market .

My friend, Do you have interesting with our struct channel, threaded rod ?If yes please send it to us we calculate a very competitive price for you.We hope to have the opportunity to work together with you in the future.
