Product Details:
Payment & Shipping Terms:
|
| Matrial: | Plastic | Type: | Bushing With Terminal |
|---|---|---|---|
| Finish: | ELectro Galvanized | Colore: | White Gray |
| UL File No.: | E 469552 | Item Code: | RL-M880 |
| Insulated: | Plastic | ||
| High Light: | Rigid Plastic Insulating Bushings,Npt Threads Plastic Insulating Bushings,ELectro Galvanized Plastic Conduit Bushing |
||
2-1/2" Rigid Plastic Insulating Bushings 105°C Flame Retardant Grey Colore Npt Threads
PVC Bushing US Standard Grey Colore
| pvc plastic low smoke and zero halogen material | colore can be grey black white |
| size available from 1/2" to 6" | used for imc rigid conduit and the steel conduit box seal |
Insulating bushings provide a smooth surface that protects wires
Used on the end of 3/4-in Rigid conduit, IMC or other threaded connectors
Thermoplastic construction
Rigid insulating bushings offer maximum protection for cables to avoid damaging abrasion due to sharp Rigid edges. Ideal for use in communications, television and security system installations. Bushings provide smooth, rounded surfaces at the ends of raceways and easily affixes to conduit; strong, impact resistant plastic construction assures continued performance. Certified flame retardant to 105°C. Always available in trade sizes from 1/2" to 6".
UL File No.: E469552
General:
1) Plastic Material IMC/ rigid conduit bushing without terminal
2) With die casting threading NPT thread
3) As the Cap for IMC AND RIGID Conduit
4) As UL stipulated:all the sizes need to be using corresponding item code when we appliedd the UL, C/W screw and steel locknut,come with the hot-gal.lock ring
5) All ranlic conduit bushing engraved the UL and size
Applications:
Ranlic malleable iron material threaded insulating or none bushings are used on threaded rigid or IMC conduits to prevent wires from being damaged by sharp edges on conduits.
Charactics & Dimension:
| ITEM CODE | MATERIAL | Name of Products | SIZE | USED FOR | UL LISTED NO. |
| RL-p880 | plastic | Conduit Bushing | 1/2" | Rigid IMC Conduit | E469552 |
| RL-p881 | plastic | Conduit Bushing | 3/4" | Rigid IMC Conduit | E469552 |
| RL-p882 | plastic | Conduit Bushing | 1" | Rigid IMC Conduit | E469552 |
| RL-p883 | plastic | Conduit Bushing | 1-1/4" | Rigid IMC Conduit | E469552 |
| RL-p884 | plastic | Conduit Bushing | 1-1/2" | Rigid IMC Conduit | E469552 |
| RL-p885 | plstic | Conduit Bushing | 2" | Rigid IMC Conduit | E469552 |
| RL-p886 | plastic | Conduit Bushing | 2-1/2" | Rigid IMC Conduit | E469552 |
| RL-p887 | plastic | Conduit Bushing | 3" | Rigid IMC Conduit | E469552 |
| RL-p888 | plastic | Conduit Bushing | 3-1/2" | Rigid IMC Conduit | E469552 |
| RL-p889 | plastic | Conduit Bushing | 4" | Rigid IMC Conduit | E469552 |
You may choose following RanLic other Conduit products:
EMT CONDUIT PIPE
IMC CONDUIT PIPE
RIGID CONDUIT PIPE
FLEXIBLE CONDUIT PIPE
LIQUID TIGHT FLEXIBLE CONDUIT
EMT connector(steel,zinc),
emt coupling(steel,zinc),
compression emt connector,
Compression emt coupling,
Squeez flexible connector(straight and angle),
Liquid tight connector(straight and angle),
Water tight hub
Romex connector
Conduit bushing
Service entrance cap
EMTstraps(one and two holes)
Strut clamp(for emt imc and rigid)
Beam clamp, emt elbow
Conduit hanger
Steel outlet box
EMT/IMC/RIGID conduit body
IMC/RIGID coupling,
steel and zinc locknut
emt imc rigid elbows
Clevis hangers
Springier hanger
conduit nipple
water proof terminal box,etc
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service

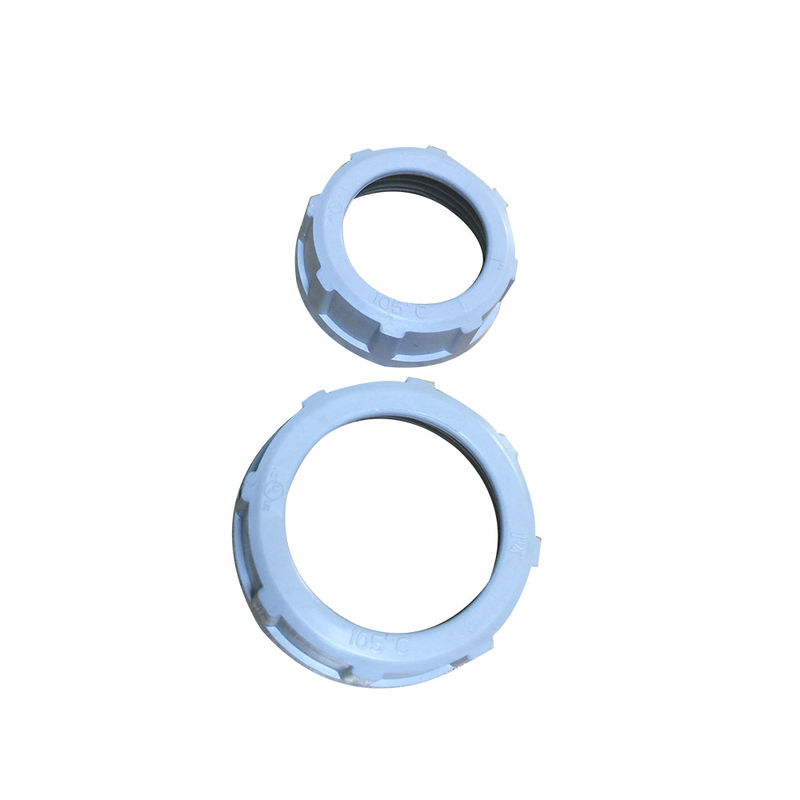

Real Product:
