Product Details:
Payment & Shipping Terms:
|
Function: | Pre Fabrication | Usage: | RUFFIN |
---|---|---|---|
Brand: | Axwill Or OEM | Thickness: | 1.60mm |
High Light: | Pre Galvanized Coil Steel Outlet Box,1.60MM Thickness Electrical Conduit Box Cover,Prefabrication Steel Outlet Box |

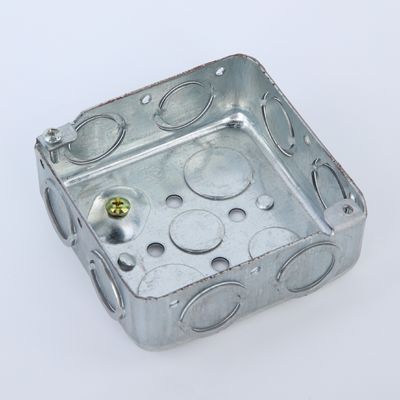

Square Steel Outlet Box 4" With Grounding Terminal 1/2" 3/4" Knockouts UL Listed 1.60MM Thickness Pre Galvanized Coil
Square Steel Outlet Junction Box 4" With Grounding Terminal 1/2" 3/4" Outlets Distribution The Wire
Electrical 1.60mm Multi-Using Cover Conduit Junction Box Pre Galvanized Telescoping 1/2"D
Electrical 1.60mm Cover Conduit Junction Box Pre Galvanized One Two Gang 5/8" Deep
Electrical Conduit Box Cover Heavy Duty 1.60mm Cover With Screws
Ruff-IN Plate Brackets & Wall stud
Electrical 1.60mm Multi-Using Cover Conduit Junction Box Pre Galvanized One Two Gang 1/2" Deep
Increase strength and rigidity help withstand the stress of stress of drywall installation
Assemblies shipped with box installed on left side of brackets, unless othersie specified
The wall stud improved far-side support stands up during drywall,installation and out performs competitor brackets
16" STUD SPACING | come with stop plate |
24" STUD SPACING | sleeve extender |
Self Adjustable Pre-fab Ring | protective plate box plate |
Installation steps:
Application: These wall support brackets are used to support electrical boxes from floor or concrete forms.
They also help prevent electrical boxes from being pushed back into the wall cavity during drywall installation.
Advantages: fold back stabilizers ensure an easy and secure electrical box installation in wall applications. They are designed to mount square boxes on walls 12”to 24” above the floor. floor and wall kick plate support brackets have box screws that are exposed after mounting so the conduits can be secured from the front of the box opening. Additionally, their multiple heights accommodate a variety of fnished floor heights.
Application: These multi-box mounting brackets are used to secure conduit boxes in stud walls.
Advantages: Multi box mounting brackets allow the installer to quickly and easily mount 4”, 4-11/16” or 6”square conduit boxes in stud walls.
Application: This box mounting bracket is used to support electrical box mounted to wood studs.
They screw directly to the face of wood studs.
Pre-Fab RUFF-IN products leave all the troubles in our factory, to efficiantly and save time for the end user.
Open box mounting bracket
1)Open box support allows for adjustablility of box position between studs
2) Support most North American boxes and/or plaster rings 4" SQ 4-11/16SQ
5"SQ and multi-gang boxes
3) Fits up to 1-1/2" wide studs 16" &24"on center
4) Compatible with rapid ring & adjustable plaster rings
5) Field cut to adjust to non-standard stud spacings
6) Stamped markings at 1/2" 1/4"and 1" increments to allow the installer to easily locate the desited box position
7) You may contact us for pre-fab assemblies
8) Bracket accessories require no tools to install
9) Fllor stand ensures consistent box height and eliminates need to measure for proper install height.
Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand

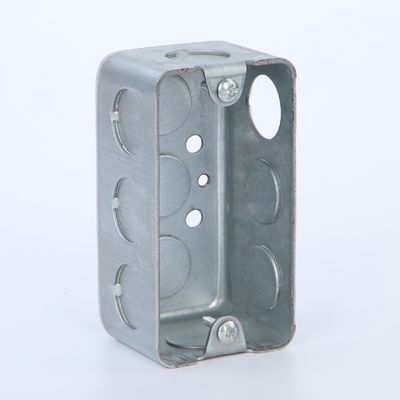

1. Pictures of emt conduit box
2. Descriptions of emt conduit box
1) Using for EMT conduit cover for octangular / square / rectangle box.
2) All using automatic punching machine & molds, precise for each products.
3) K.O.S can make mixed size or only one size.
4) C/O cover and screws. Can make the bottom side hole as the terminal hole
5) Come without terminal brass part unless ordered, can be make one or two adjustable lug, thickness from 0.60mm to 1.60mm.
