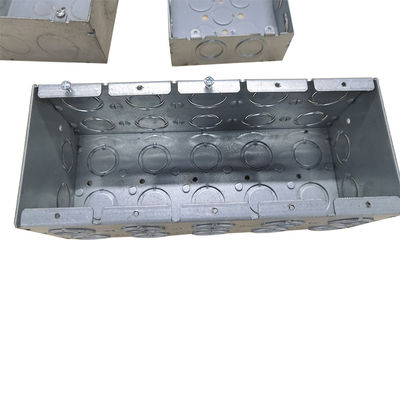

Prefabrication 1.60mm Thickness 5 Gang Masonry Box Zinc Plated

Large Image : Prefabrication 1.60mm Thickness 5 Gang Masonry Box Zinc Plated

Product Details:

Place of Origin:	CHINA
Brand Name:	AXWILL & RANLIC
Certification:	UL LISTED
Model Number:	87004

Payment & Shipping Terms:

Minimum Order Quantity:	10000 SET
Price:	0.6USD
Packaging Details:	CARTONS
Delivery Time:	25 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	10000000 PER QUARTER

Contact Now

Detailed Product Description

Function:	Pre Fabrication	Usage:	RUFFIN
Brand:	Axwill Or OEM	Thickness:	1.60mm
High Light:	1.60mm Thickness 5 Gang Masonry Box , Prefabrication 5 Gang Masonry Box

Function:

Pre Fabrication

Usage:

RUFFIN

Brand:

Axwill Or OEM

Thickness:

1.60mm

High Light:

1.60mm Thickness 5 Gang Masonry Box

Prefabrication 5 Gang Masonry Box

5 Gang Mansory Steel Conduit Box 1.60mm Thickness Zinc Plated Universal Knockouts

4 Gang Mansory Steel Conduit Box 1.60mm Thickness Zinc Plated Universal Knockouts

Multi-Gang Steel Conduit Box 1/2" 3/4" Universal Knockouts No Brackets Prefab Available

3-5 gang Masonry Box, NonGangable, 3-1/2 in. Deep, Conduit KO's, Welded

Integral brackets securely hold box to concrete block from front and back in masonry block walls, even in irregular openings
Supplied with nineteen 1/2-3/4 in. concentric knockouts
Quick and accurate positioning
Break off front tabs
Non-gangable
67.3 cu. in. capacity
Acceptable for use in 2-hour fire rated walls

5-Gang Box, Welded, 2-1/2 in. Deep, Eight 3/4 & 1 in. Concentric KO's, Six 1/2 in. KO's, and Ten 3/4 in. KO's

Gang boxes save time in installation, no need to gang boxes together.
Have 3/4" and 1" concentric KO's for use with a wide variety of wiring methods.
Bottom KO pattern, 3-1/2" and 2-3/4" at either end of box.
Accepts two styles of covers, flat and 3/4" raised device cover.
Use low voltage partitions #947 or #949.

4 in. Square Box, Welded, 2-1/8 in. Deep, One 1/2 in. and Twelve 3/4 in. KO's

Designed to enclose electrical wiring, switches, receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled.

Combination screw heads allow quick installation
Welded construction
Eight 3/4 in. knockouts
UL Listed
30.3 cu. in. capacity
Acceptable in 2-hour fire rated walls
UPC barcoded

0.8mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.0mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.2mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.5mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL

0.8mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.0mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.2mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.5mm wall thick	1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL

Electrical 1.60mm Multi-Using Cover Conduit Junction Box Pre Galvanized Telescoping 1/2"D

Electrical 1.60mm Cover Conduit Junction Box Pre Galvanized One Two Gang 5/8" Deep

Electrical Conduit Box Cover Heavy Duty 1.60mm Cover With Screws

Ruff-IN Plate Brackets & Wall stud

Electrical 1.60mm Multi-Using Cover Conduit Junction Box Pre Galvanized One Two Gang 1/2" Deep

Increase strength and rigidity help withstand the stress of stress of drywall installation

Assemblies shipped with box installed on left side of brackets, unless othersie specified

The wall stud improved far-side support stands up during drywall,installation and out performs competitor brackets

16" STUD SPACING	come with stop plate
24" STUD SPACING	sleeve extender
Self Adjustable Pre-fab Ring	protective plate box plate

Installation steps:

Install Bar hangers on ceiling joists or wall studs by screws.
Take off screw from stud on bar hanger, installs in 1/2” knockouts located on the bottom of boxes.
All above 5 Bar hangers are installed with metallic boxes on wall studs or ceiling joists.
When intended to support a fixture/luminaire in a wall, load capacity is 6 kg (13 Ib).

Application: These wall support brackets are used to support electrical boxes from ﬂoor or concrete forms.
They also help prevent electrical boxes from being pushed back into the wall cavity during drywall installation.
Advantages: fold back stabilizers ensure an easy and secure electrical box installation in wall applications. They are designed to mount square boxes on walls 12”to 24” above the ﬂoor. ﬂoor and wall kick plate support brackets have box screws that are exposed after mounting so the conduits can be secured from the front of the box opening. Additionally, their multiple heights accommodate a variety of fnished ﬂoor heights.

Application: These multi-box mounting brackets are used to secure conduit boxes in stud walls.
Advantages: Multi box mounting brackets allow the installer to quickly and easily mount 4”, 4-11/16” or 6”square conduit boxes in stud walls.

Application: This box mounting bracket is used to support electrical box mounted to wood studs.

They screw directly to the face of wood studs.

Pre-Fab RUFF-IN products leave all the troubles in our factory, to efficiantly and save time for the end user.

Open box mounting bracket
1)Open box support allows for adjustablility of box position between studs
2) Support most North American boxes and/or plaster rings 4" SQ 4-11/16SQ
5"SQ and multi-gang boxes
3) Fits up to 1-1/2" wide studs 16" &24"on center
4) Compatible with rapid ring & adjustable plaster rings
5) Field cut to adjust to non-standard stud spacings
6) Stamped markings at 1/2" 1/4"and 1" increments to allow the installer to easily locate the desited box position
7) You may contact us for pre-fab assemblies
8) Bracket accessories require no tools to install
9) Fllor stand ensures consistent box height and eliminates need to measure for proper install height.

Prefabrication 1.60mm Thickness 5 Gang Masonry Box Zinc Plated
Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand

Prefabrication 1.60mm Thickness 5 Gang Masonry Box Zinc Plated

Packaging & Delivery

Packaging Details
1. Skin Packing each products/master ctn
2. Inner ctn,master ctn
3. Each piece one plastic package,master ctn
Port
Shanghai/Ningbo
Lead Time:
20-30 days.

Masonry Boxes are manufactured from durable pre-galvanized steel and are designed to house and protect electrical wiring, switches and receptacles in masonry walls. All steel boxes are UL listed and acceptable for use in 2-hour fire rated walls and ceilings. Knockouts for conduit connectors and mounting holes are designed to resist slurry from entering box.
