2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4"

China 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier
2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier 2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4" supplier

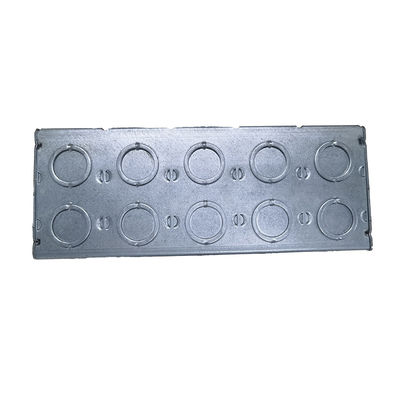

Large Image :  2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4"

Product Details:

Place of Origin: CHINA
Brand Name: AXWILL & RANLIC
Certification: UL LISTED
Model Number: 87004

Payment & Shipping Terms:

Minimum Order Quantity: 10000 SET
Price: 0.6USD
Packaging Details: CARTONS
Delivery Time: 25 DAYS
Payment Terms: L/C, T/T
Supply Ability: 10000000 PER QUARTER
Contact Now
Detailed Product Description
Function: Pre Fabrication Usage: RUFFIN
Brand: Axwill Or OEM Thickness: 1.60mm
High Light:

Universal Knockouts Steel Conduit Box

,

Zinc Plated Steel Conduit Box

,

Pre Fabrication Metal Conduit Box

2-5 Gang Mansory Steel Conduit Box 1.60mm Thickness Zinc Plated Universal Knockouts 1/2" 3/4"

Multi-Gang Steel Conduit Box 1/2" 3/4" Universal Knockouts No Brackets Prefab Available





3-5 gang Masonry Box, NonGangable, 3-1/2 in. Deep, Conduit KO's, Welded
  • Integral brackets securely hold box to concrete block from front and back in masonry block walls, even in irregular openings
  • Supplied with nineteen 1/2-3/4 in. concentric knockouts
  • Quick and accurate positioning
  • Break off front tabs
  • Non-gangable
  • 67.3 cu. in. capacity
  • Acceptable for use in 2-hour fire rated walls



5-Gang Box, Welded, 2-1/2 in. Deep, Eight 3/4 & 1 in. Concentric KO's, Six 1/2 in. KO's, and Ten 3/4 in. KO's
  • Gang boxes save time in installation, no need to gang boxes together.
  • Have 3/4" and 1" concentric KO's for use with a wide variety of wiring methods.
  • Bottom KO pattern, 3-1/2" and 2-3/4" at either end of box.
  • Accepts two styles of covers, flat and 3/4" raised device cover.
  • Use low voltage partitions #947 or #949.
4 in. Square Box, Welded, 2-1/8 in. Deep, One 1/2 in. and Twelve 3/4 in. KO's

Designed to enclose electrical wiring, switches, receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled.

  • Combination screw heads allow quick installation
  • Welded construction
  • Eight 3/4 in. knockouts
  • UL Listed
  • 30.3 cu. in. capacity
  • Acceptable in 2-hour fire rated walls
  • UPC barcoded



0.8mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.0mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.2mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.5mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL







0.8mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.0mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.2mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL
1.5mm wall thick 1/2" HIGHT, HOT DIP GALVANIZED STEEL COIL



Electrical 1.60mm Multi-Using Cover Conduit Junction Box Pre Galvanized Telescoping 1/2"D

Electrical 1.60mm Cover Conduit Junction Box Pre Galvanized One Two Gang 5/8" Deep

Electrical Conduit Box Cover Heavy Duty 1.60mm Cover With Screws

Ruff-IN Plate Brackets & Wall stud



Electrical 1.60mm Multi-Using Cover Conduit Junction Box Pre Galvanized One Two Gang 1/2" Deep



Increase strength and rigidity help withstand the stress of stress of drywall installation

Assemblies shipped with box installed on left side of brackets, unless othersie specified

The wall stud improved far-side support stands up during drywall,installation and out performs competitor brackets



16" STUD SPACING come with stop plate
24" STUD SPACING sleeve extender
Self Adjustable Pre-fab Ring protective plate box plate





Installation steps:

  1. Install Bar hangers on ceiling joists or wall studs by screws.
  2. Take off screw from stud on bar hanger, installs in 1/2” knockouts located on the bottom of boxes.
  3. All above 5 Bar hangers are installed with metallic boxes on wall studs or ceiling joists.
  4. When intended to support a fixture/luminaire in a wall, load capacity is 6 kg (13 Ib).



Application: These wall support brackets are used to support electrical boxes from floor or concrete forms.
They also help prevent electrical boxes from being pushed back into the wall cavity during drywall installation.
Advantages: fold back stabilizers ensure an easy and secure electrical box installation in wall applications. They are designed to mount square boxes on walls 12”to 24” above the floor. floor and wall kick plate support brackets have box screws that are exposed after mounting so the conduits can be secured from the front of the box opening. Additionally, their multiple heights accommodate a variety of fnished floor heights.




Application: These multi-box mounting brackets are used to secure conduit boxes in stud walls.
Advantages: Multi box mounting brackets allow the installer to quickly and easily mount 4”, 4-11/16” or 6”square conduit boxes in stud walls.





Application: This box mounting bracket is used to support electrical box mounted to wood studs.

They screw directly to the face of wood studs.









Pre-Fab RUFF-IN products leave all the troubles in our factory, to efficiantly and save time for the end user.


Open box mounting bracket
1) Open box support allows for adjustablility of box position between studs
2) Support most North American boxes and/or plaster rings 4" SQ 4-11/16SQ
5"SQ and multi-gang boxes
3) Fits up to 1-1/2" wide studs 16" &24"on center
4) Compatible with rapid ring & adjustable plaster rings
5) Field cut to adjust to non-standard stud spacings
6) Stamped markings at 1/2" 1/4"and 1" increments to allow the installer to easily locate the desited box position
7) You may contact us for pre-fab assemblies
8) Bracket accessories require no tools to install
9) Fllor stand ensures consistent box height and eliminates need to measure for proper install height.

2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4"
Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand



2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4"

2 5 Gang Mansory Steel Conduit Box Zinc Plated Universal Knockouts 1/2" 3/4"

Packaging & Delivery
Packaging Details
1. Skin Packing each products/master ctn
2. Inner ctn,master ctn
3. Each piece one plastic package,master ctn
Port
Shanghai/Ningbo
Lead Time:
20-30 days.
Masonry Boxes are manufactured from durable pre-galvanized steel and are designed to house and protect electrical wiring, switches and receptacles in masonry walls. All steel boxes are UL listed and acceptable for use in 2-hour fire rated walls and ceilings. Knockouts for conduit connectors and mounting holes are designed to resist slurry from entering box.
  • Gangable design allows construction of multiple gang box from one product
  • Supplied with eight (8) 1/2 in. and 3/4 in. concentric knockouts
  • Ground is located near the front of the box for installer's convenience
  • 15.5 cu. in. capacity
  • Note: product may vary by store




1. Pictures of emt conduit box



2. Descriptions of emt conduit box

1) Using for EMT conduit cover for octangular / square / rectangle box.

2) All using automatic punching machine & molds, precise for each products.

3) K.O.S can make mixed size or only one size.

4) C/O cover and screws. Can make the bottom side hole as the terminal hole

5) Come without terminal brass part unless ordered, can be make one or two adjustable lug, thickness from 0.60mm to 1.60mm.
