Product Details:
Payment & Shipping Terms:
|
Colore: | Gray | Material: | Aluminum |
---|---|---|---|
Finish: | PVC Coated | UL File No.: | E469552 |
Deep: | 1-1/2" | Size:: | 1/2" 3/4" |
High Light: | 3/4" Holes Waterproof Terminal Box,Waterproof Terminal Box PVC Coated,E469552 Waterproof Terminal Box |

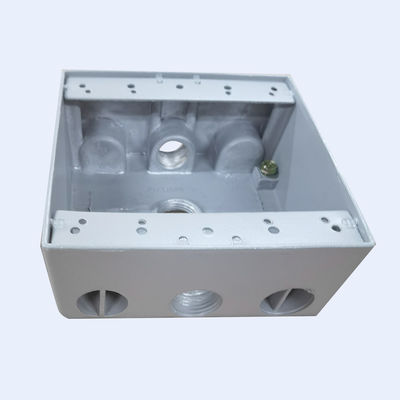

1/2" 3/4" Holes Waterproof Terminal Box Grey PVC Coated UL Listed 7-10 holes water proof box
UL FILE NUMBER: E469552
Characteristics & Dimension:
Material: Aluminum Alloy | K.O.'S(HOLE) | ||||||
Finish: Pvc coated or Polishing | Side:4*1/2", bottom: 1*1/2" | ||||||
Available Size: FSB-880 | Side:2*1/2" , bottom:1*1/2" | ||||||
Width*Length*Hight | Side:4*3/4" , bottom:1*3/4" | ||||||
4 inch*2 inch* 2-1/8" (54mm) | Side:4*3/4" , bottom:1*1/2" | ||||||
Come without cover and gaskets unless ordered,for connector the imc/rigid conduit,the terminal screw can be brass or steel.the holes can be make 3,4,5. | |||||||
all holes distribution can according to customer's required to change |
General:
1) Each water proof box come weith two seal and two socket screws
2) Package:each water proof conduit box pe film package
3) Gray pvc coated,generally do not come with the cover and gasket.
4) Hole distribution can be customized or standard
5) UL listed to assure the quality of the water proof box
6) For IMC AND RSC conduit connection.
Application:
These 2” deep, one-gang weatherproof boxes are used for branch circuit wiring in wet, damp and dry locations. They may even be used as weatherproof junction boxes to install receptacles, switches and GFCI devices.
Other Names:
Weatherproof box, water tight box, water-tight box, weather resistant box, weatherproof junction box, weather proof box, liquid tight box, liquidtight box, sealed electrical box.
Why Choose Ranlic Conduit Item:
1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service
You may choose following RanLic other Conduit products:
EMT CONDUIT PIPE
IMC CONDUIT PIPE
RIGID CONDUIT PIPE
FLEXIBLE CONDUIT PIPE
LIQUID TIGHT FLEXIBLE CONDUIT
EMT connector(steel,zinc),
emt coupling(steel,zinc),
compression emt connector,
Compression emt coupling,
Squeez flexible connector(straight and angle),
Liquid tight connector(straight and angle),
Water tight hub
Romex connector
Conduit bushing
Service entrance cap
EMTstraps(one and two holes)
Strut clamp(for emt imc and rigid)
Beam clamp, emt elbow
Conduit hanger
Steel outlet box
EMT/IMC/RIGID conduit body
IMC/RIGID coupling,
steel and zinc locknut
emt imc rigid elbows
Clevis hangers
Springier hanger
conduit nipple
water proof terminal box
ETC................................
TGB 50-3 | 2-1/2" |
|
1-1/2" | grey pvc coated | ||||||||||||
|
|
1-1/2" | grey pvc coated | |||||||||||||
TGB 50-5X | 4-1/2" | 1-1/2" | grey pvc coated | |||||||||||||
TGB 50-7 | 6-1/2" | 1-1/2" | grey pvc coated | |||||||||||||
TGB 50-7X | 6-1/2" | 1-1/2" | grey pvc coated | |||||||||||||
TGB 75-3 | 2-3/4" | 1-3/4" | grey pvc coated | |||||||||||||
|
4-3/4" | 1-3/4" | grey pvc coated | |||||||||||||
TGB 75-5X | 4-3/4" | 1-3/4" | grey pvc coated | |||||||||||||
TGB 75-7 | 6-3/4" | 1-3/4" | grey pvc coated | |||||||||||||
TGB 75-7X | 6-3/4" | 1-3/4" | grey pvc coated | |||||||||||||
TGB 100-10X | 3,4,5 One inch | 1 one inch | grey pvc coated |
