Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout

Certification
Good quality IMC Electrical Conduit for sales
Good quality IMC Electrical Conduit for sales
I'm Online Chat Now

Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout

China Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier
Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout supplier

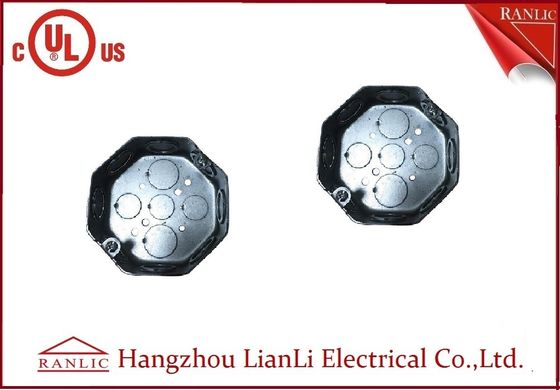

Large Image :  Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout

Product Details:

Place of Origin: HANGZHOU,CHINA
Brand Name: RANLIC
Certification: E349123
Model Number: 886640

Payment & Shipping Terms:

Minimum Order Quantity: 2000 Nos
Price: negotiation
Packaging Details: PE FILM OR BUBBLE BAG White Color Cartons
Delivery Time: 30 DAYS
Supply Ability: 200000 PIECES/MOUNTH
Detailed Product Description
Material: Hot Dip Steel Coil Thickness: 0.9mm To 1.60mm
UL File No.: E349123 Brand: RANLIC
Knockouts: 1/2" And 3/4" Cover: Come Without Cover
Hight: 1-7/8" Or 2-1/8" Color: Yellow Or White
High Light:

Electrical Outlet Box

,

Metal Junction Box

,

Metal Conduit Box Eight Side



UL Listed Electrical Steel Outlet Box Eight Side Octangular Electrical Box-1/2&3/4" Knockout



UL FILE NO.:E349123



Description:

1) Come without terminal brass&screws unless ordered,thickness from 1.20mm to 1.60mm,but UL listed all must be 1.60mm,in compliance to lastest UL version updated

2) Ingraved the UL file number inside and the brand name

3) Can choose with terminal hole or not

4) Drawing steel conduit box

5) KO can be changed according to cusotmers

6) Ranlic conduit outlet box always ship 1.60mm is UL LISTED

7) As UL stipulation all the steel outlet box must engrave our UL file number and corresponding item code.



Applications:

RANLIC ELECTRICAL OUTLET BOX

5" by 5" eight holes (1/2"inside 3/4") with conduit knockouts are installed in walls or ceilings for lighting fixtures, switches, receptacles or other outlet devices. Octangular eight-side boxes are used to bring power to a number of electrical devices where mul-tiple conductor runs are split in two or more directions.



Ranlic Electrical Outlet Conduit Box Items:

Octangulre Conduit Box,Square Outlet Box,Rectangular(Handy) Outlet box,Eight-Side Octangular Box,Handy Box Cover(With Or Without Holes),Square Conduit Box Cover,Rectangular Outlet Box Cover,

Round Cover,One gang multi-using Cover,Two gang square Box Cover,

Products all UL Listed to ensure the products quality

Thickness can be 0.80mm to 1.60mm



K.O.Distribuition:

K.O.'S(HOLE)
Side:8*1/2",  bottom:3*1/2" ,2*3/4"
Side:8*3/4",  bottom:3*1/2" ,2*3/4"
Side:8*1/2"in3/4",bottom:3*1/2" ,2*3/4"
all holes distribution can according to customer's required to change



Why Choose Ranlic Conduit Item:



1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
   customer's warehouse to improving our service



Features:



Material: HOT DIP STEEL COIL (G 60 STEEL)
Finish: HOT DIP or PRE-GALVANIZED
Available Size:   886650(1-1/2"H)
Width*Length*Hight  (inch*inch*inch-mm)
5" * 5" * 1-1/2" 1-7/8" (47mm)
Come without terminal brass&screws unless ordered,thickness from 0.60mm to 1.60mm,but UL listed all must be 1.60mm,in compliance to lastest UL version updated





Our Package:

Steel Outlet Box Metal Conduit Box Electrical Eight Side 1/2 3/4 Knockout
