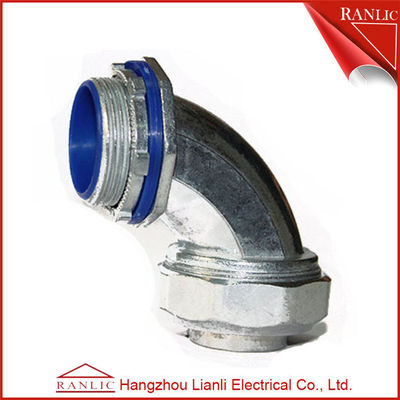

Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat

China Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat supplier
Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat supplier Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat supplier Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat supplier

Large Image :  Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat

Product Details:

Place of Origin: Hangzhou,China
Brand Name: RANLIC
Certification: UL E469552
Model Number: RL-810

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Pieces
Price: negotiation
Packaging Details: Inner carton,outer carton
Delivery Time: 30 days per 20gp
Contact Now
Detailed Product Description
Matrial: Zinc Die Casting Type: Liquid Tight
Finish: Polishing Inside Throat: PVC
Colore: Yellow/Blue UL File No.: E 469552
Item Code: RL-810



UL Listed Liquid Tight Flexible Connector 90 Degree With Insulated Throat 3" 4"





UL File No.: E469552



General:



1) Liquid tight connector 90d angle is for the liquid tight flexible conduit

2)  It has the pvc throat insulated and locknut washer

3) Come always with the pvc parts insure that is liquid tight

4) As UL stipulated:all the sizes need to be using corresponding item code when we appliedd the UL, C/W screw and steel locknut,come with the hot-gal.lock ring

5) Put Liquid tight flexible conduit is easy,just screw in the thread

6) RANLIC UL listed liquid tight flexible conduit always keep best quality



Applications:

These insulated straight connectors are used on flexible metallic liquid-tight conduits and Type-B flexible, nonmetallic, liquid-tight conduits. They are used to positively
bond conduits to boxes or enclosures in both wet and damp locations.

•Trade Size (in.) : [1/2"] [3/4"] [1"] [1-1/4"] [1-1/2"] [2"] [2-1/2"] [3"] [4"]

• Zinc alloy to ensure the products never be rusted like steel



Charactics & Dimension:



ITEM CODE MATERIAL NAME SIZE TYPE UL LISTED NO.
RL-810 ZINC Angle 3/8" Liquid Tight E469552
RL-811 ZINC Angle 1/2" Liquid Tight E469552
RL-812 ZINC Angle 3/4" Liquid Tight E469552
RL-813 ZINC Angle 1" Liquid Tight E469552
RL-814 ZINC Angle 1-1/4" Liquid Tight E469552
RL-815 ZINC Angle 1-1/2" Liquid Tight E469552
RL-816 ZINC Angle 2" Liquid Tight E469552
RL-817 ZINC Angle 3" Liquid Tight E469552
RL-818 ZINC Angle 4" Liquid Tight E469552


You may choose following RanLic other Conduit products:




EMT CONDUIT PIPE

IMC CONDUIT PIPE

RIGID CONDUIT PIPE

FLEXIBLE CONDUIT PIPE

LIQUID TIGHT FLEXIBLE CONDUIT

EMT connector(steel,zinc),

emt coupling(steel,zinc),

compression emt connector,

Compression emt coupling,

Squeez flexible connector(straight and angle),

Liquid tight connector(straight and angle),

Water tight hub

Romex connector

Conduit bushing

Service entrance cap

EMTstraps(one and two holes)

Strut clamp(for emt imc and rigid)

Beam clamp, emt elbow

Conduit hanger

Steel outlet box

EMT/IMC/RIGID conduit body

IMC/RIGID coupling,

steel and zinc locknut

emt imc rigid elbows

Clevis hangers

Springier hanger

conduit nipple

water proof terminal box,etc





Why Choose Ranlic Conduit Item:



1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
   customer's warehouse to improving our service



Our Package:

Liquid Tight Flexible Metal Conduit Fittings 90 Degree Connector With Insulated Throat
