Hangzhou LianLi Electrical Co.,Ltd

Ranlic Products Are The Part Of Your Life!

Home ProductsIMC Conduit Fittings

One Hole Rigid Conduit Straps / Heavy Duty Rigid Galvanized Steel Conduit Fittings

Certification
Good quality IMC Electrical Conduit for sales
Good quality IMC Electrical Conduit for sales
I'm Online Chat Now

One Hole Rigid Conduit Straps / Heavy Duty Rigid Galvanized Steel Conduit Fittings

China One Hole Rigid Conduit Straps / Heavy Duty Rigid Galvanized Steel Conduit Fittings supplier

Large Image :  One Hole Rigid Conduit Straps / Heavy Duty Rigid Galvanized Steel Conduit Fittings

Product Details:

Place of Origin: China
Brand Name: Ranlic
Certification: UL Certified
Model Number: RL-610R

Payment & Shipping Terms:

Minimum Order Quantity: 2000 Pieces
Price: negotiation
Packaging Details: inner cartons,main carton
Delivery Time: 3000000 pieces per mounth
Supply Ability: 30000 pieces per day
Detailed Product Description
Material: Cold Rolled Coil Color: Blue White
Type: One Hole Used For: IMC & Rigid Conduit
FInish: Electro-Gal Size: 1/2" - 4"
UL File No.: E469927



Steel Rigid&IMC Conduit RGD Straps Heavy Duty Electro Galvanized 1.60mm thickness 1/2" 3/4" 1"





UL File No.: E469927



General:

1) Electro galvanized IMC AND RIGID ONE HOLE STRAPS with thickness from 1.20mm to 1.60mm

2) Five to eight inch also available if ordered, but none-UL listed,the darcromat is the acid liquid testing more than 200 hours dip

3) As the clamp for the IMC AND RIGID CONDUIT

4) Corresponding Code: RL-610R  biggest size UL listed for imc and rigid conduit is 4", for emt conduit is 2"

5) Stainless material emt straps also available







Applications:
Used for tighting the IMC AND RIGID CONDUIT pipe to the mount place....

Each IMC AND RIGID CONDUIT generally use 3-6 pieces emt strap

Ranlic IMC AND RIGID CONDUIT easy to fix on emt conduit,just clip on

Standard thickness is 1.2mm,but some also use 0.80mm



Characters & Dimension:





ITEM CODE MATERIAL Name of Products SIZE USED FOR UL LISTED NO.
RL-610R Steel IMC/RIGID STRAPS 1/2" Pipe and Conduit  E469927
RL-611R Steel IMC/RIGID STRAPS 3/4" Pipe and Conduit  E469927
RL-612R Steel IMC/RIGID STRAPS 1" Pipe and Conduit  E469927
RL-613R Steel IMC/RIGID STRAPS 1-1/4" Pipe and Conduit  E469927
RL-614R Steel IMC/RIGID STRAPS 1-1/2" Pipe and Conduit  E469927
RL-615R Steel IMC/RIGID STRAPS 2" Pipe and Conduit  E469927
RL-616R Steel IMC/RIGID STRAPS 2-1/2" Pipe and Conduit  E469927
RL-617R Steel IMC/RIGID STRAPS 3" Pipe and Conduit  E469927
RL-618R Steel IMC/RIGID STRAPS 3-1/2" Pipe and Conduit  E469927
RL-619R Steel IMC/RIGID STRAPS 4" Pipe and Conduit  E469927




You may choose following RanLic other Conduit products:


EMT CONDUIT PIPE

IMC CONDUIT PIPE

RIGID CONDUIT PIPE

FLEXIBLE CONDUIT PIPE

LIQUID TIGHT FLEXIBLE CONDUIT

EMT connector(steel,zinc),

emt coupling(steel,zinc),

compression emt connector,

Compression emt coupling,

Squeez flexible connector(straight and angle),

Liquid tight connector(straight and angle),

Water tight hub

Romex connector

Conduit bushing

Service entrance cap

EMTstraps(one and two holes)

Strut clamp(for emt imc and rigid)

Beam clamp, emt elbow

Conduit hanger

Steel outlet box

EMT/IMC/RIGID conduit body

IMC/RIGID coupling,

steel and zinc locknut

emt imc rigid elbows

Clevis hangers

Springier hanger

conduit nipple

water proof terminal box

ETC................................



Why Choose Ranlic Conduit Item:

1)High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
   customer's warehouse to improving our service





Show Pictures:

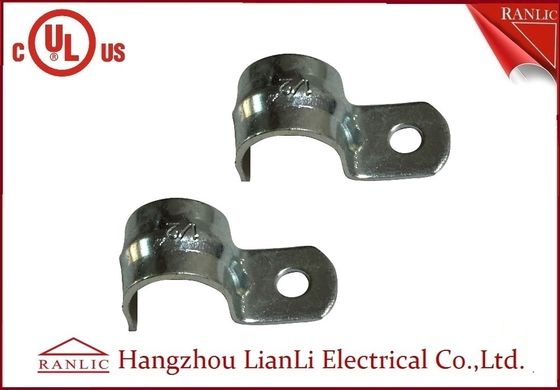

One Hole Rigid Conduit Straps / Heavy Duty Rigid Galvanized Steel Conduit Fittings
