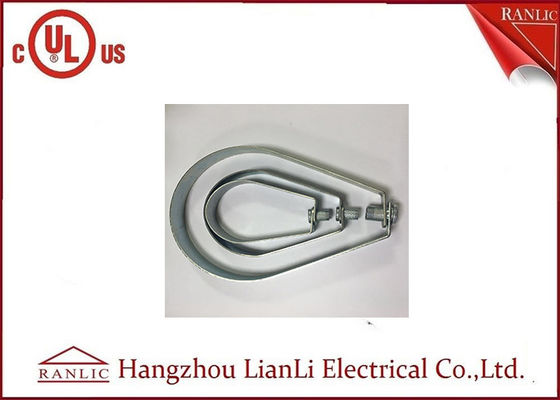

Stainless Steel Clamp Swivel Ring Hanger For Threaded Rod , 3 / 6 Inch

China Stainless Steel Clamp Swivel Ring Hanger  For Threaded Rod , 3 / 6 Inch supplier
Stainless Steel Clamp Swivel Ring Hanger  For Threaded Rod , 3 / 6 Inch supplier Stainless Steel Clamp Swivel Ring Hanger  For Threaded Rod , 3 / 6 Inch supplier

Large Image :  Stainless Steel Clamp Swivel Ring Hanger For Threaded Rod , 3 / 6 Inch

Product Details:

Place of Origin: Hangzhou,China
Brand Name: RANLIC
Certification: UL Certificate
Model Number: RL-860

Payment & Shipping Terms:

Minimum Order Quantity: 500 Pieces
Price: negotiation
Packaging Details: inner plastic bag,main carton
Delivery Time: 25 days per 1000000 pieces
Payment Terms: L/C, T/T
Supply Ability: 300000 pieces per mounth
Contact Now
Detailed Product Description
Features: C/W Nut And Bolt, Both Are Electro-galvanized Material: Cold Steel Coil
Type: Clamp Finish: Electro-Galvanized
Application: Hanger For The Conduit Pipe UL File No.: E469927

UL Listed Steel Rigid Conduit Springier Pipe Hanger Stainless Material Available Swive Band Hanger 1/2" 3" 6"





UL File No.: E469927



General:

1) Electro galvanized Springier pipe hanger with thickness from 1.00mm to 2.00mm

2) Five to eight inch also available if ordered, but none-UL listed,the darcromat is the acid liquid testing more than 200 hours dip

3) As the clamp for emt conduit pipe to thread rod

4) Corresponding Code: RL-860

5) Stainless material conduit hanger available





Applications:
Used for tighting the emt conduit pipe to thread rod, bottom of pipe to top of hanger.

Each strut clamp can stamp directly of the customer's brand

Ranlic strut clamp come with screw and nut

Standard thickness is 1.2mm,2.00mm available



Characters & Dimension:





ITEM CODE MATERIAL Name of Products SIZE USED FOR UL LISTED NO.
RL-860 Steel/Stainless Springier Conduit Hanger 1/2" EMT Conduit to Thread Rod E469927
RL-861 Steel/Stainless Springier Conduit Hanger 3/4" EMT Conduit to Thread Rod E469927
RL-862 Steel/Stainless Springier Conduit Hanger 1" EMT Conduit to Thread Rod E469927
RL-863 Steel/Stainless Springier Conduit Hanger 1-1/4" EMT Conduit to Thread Rod E469927
RL-864 Steel/Stainless Springier Conduit Hanger 1-1/2" EMT Conduit to Thread Rod E469552
RL-865 Steel/Stainless Springier Conduit Hanger 2" EMT Conduit to Thread Rod E469552
RL-866 Steel/Stainless Springier Conduit Hanger 2-1/2" EMT Conduit to Thread Rod E469552
RL-867 Steel/Stainless Springier Conduit Hanger 3" EMT Conduit to Thread Rod E469552
RL-868 Steel/Stainless Springier Conduit Hanger 3-1/2" EMT Conduit to Thread Rod E469552
RL-869 Steel/Stainless Springier Conduit Hanger 4" EMT Conduit to Thread Rod E469552



You may choose following RanLic other Conduit products:

EMT CONDUIT PIPE

IMC CONDUIT PIPE

RIGID CONDUIT PIPE

FLEXIBLE CONDUIT PIPE

LIQUID TIGHT FLEXIBLE CONDUIT

EMT connector(steel,zinc),

emt coupling(steel,zinc),

compression emt connector,

Compression emt coupling,

Squeez flexible connector(straight and angle),

Liquid tight connector(straight and angle),

Water tight hub

Romex connector

Conduit bushing

Service entrance cap

EMTstraps(one and two holes)

Strut clamp(for emt imc and rigid)

Beam clamp, emt elbow

Conduit hanger

Steel outlet box

EMT/IMC/RIGID conduit body

IMC/RIGID coupling,

steel and zinc locknut

emt imc rigid elbows

Clevis hangers

Springier hanger

conduit nipple

water proof terminal box

ETC................................



Why Choose Ranlic Conduit Item:

1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
customer's warehouse to improving our service
