Product Details:
Payment & Shipping Terms:
|
Steel Lot: | Hot Dip Steel Coil | Color: | Gray Or Black |
---|---|---|---|
Finish: | PVC Coated | Length: | Customized |
Connector: | Use Liquid Tight Connector | Size: | 1/2" TO 4" |
Application: | Outdoor | ||
High Light: | UL Listed Liquid Tight Flexible Conduit,1" Liquid Tight Flexible Conduit,PVC Coated Liquid Tight Flexible Conduit |

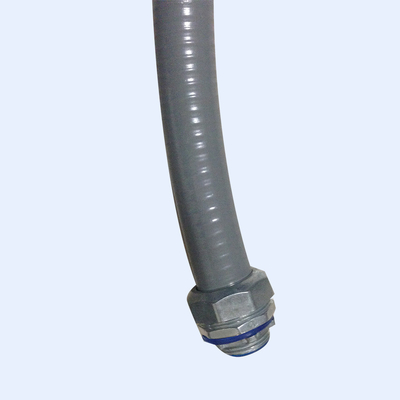

2" 1" Liquid Tight Flexible Conduit Hot Dip Zinc Coated UL Listed Grey Black Pvc Jacket Metallic Inside

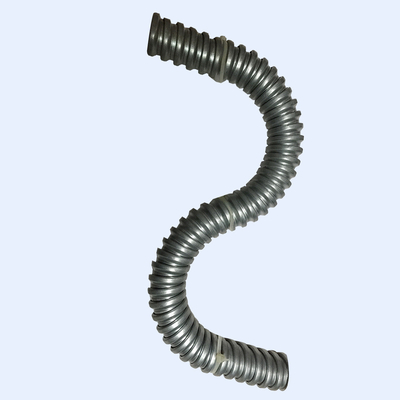

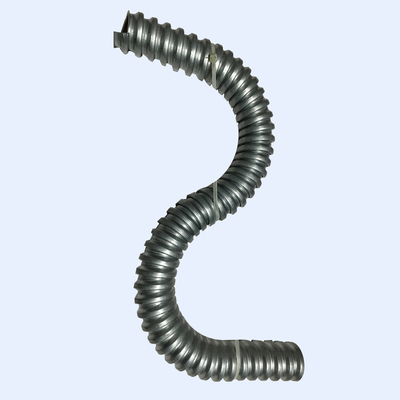

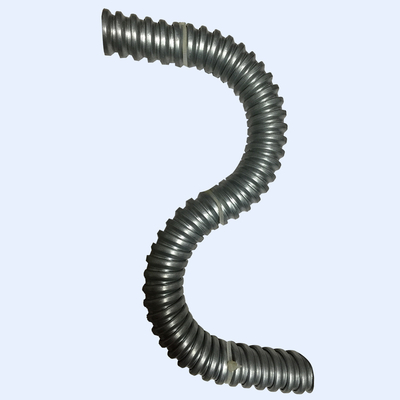

The Type Hi-Low Liquidtight Flexible Steel Conduit shall be formed from
a zinc coated galvanized low carbon steel strip having a uniform width and thickness. The construction shall be in accordance with UL 360. The finished Type Hi-Low LFMC dimensions shall be in accordance with Table 5.1 of UL 360 which is summarized in Table 3.
A rugged moisture, oil and sunlight resistant polyvinyl chloride (PVC) jacket shall be applied directly over the flexible metal conduit with a wall thickness in accordance with Table 4.1 of UL 360.
LF-10 | 3/8" | With cotton wire,pvc jacket | ||
LF-11 | 1/2" | With cotton wire,pvc jacket | ||
LF-12 | 3/4" | With cotton wire,pvc jacket | ||
LF-13 | 1" | With cotton wire,pvc jacket | ||
LF-14 | 1-1/4" | With cotton wire,pvc jacket | ||
LF-15 | 1-1/2" | With cotton wire,pvc jacket | ||
LF-16 | 2" | With cotton wire,pvc jacket | ||
LF-17 | 2-1/2" | With cotton wire,pvc jacket | ||
LF-18 | 3" | With cotton wire,pvc jacket | ||
LF-19 | 4" | With cotton wire,pvc jacket |
General:
For protectiong the electrical wire, all the steel coil thickness exceeding 3.5mm to assure 190 ponds pressure, avoid the heavy item press flexible conduit abnormally. galvanized thickness eceeding 40 micrometer anti rust,Inside with the cotton wire to make the pvc flat and wiring easily.
Features:
1) Hot-dip/electro-gal.steel coil material work temp.-25 to 350 degree

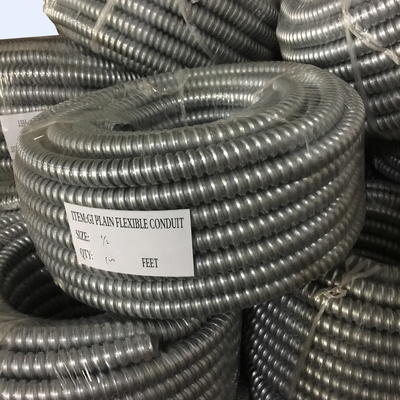

2) All package meters available 15meter,25meter,30meter and 100feet.
3) The PVC part durable and reach to IP6 anti fire
Why Choose Ranlic Flexible Conduit
We are sending samples free of charges
All testing and the production in the our factory to assure the quality
When start buying our products,if destination markets growing fastly ranlic
will pay advertisment in customer's market to help our customer publishing
our brand.
1/2" 1.05mm thickness | gray pvc white or black as customer require |
3/4" 1.30mm thickness | |
gray pvc white or black as customer require |
Descriptions of pvc electric fittings/pvc electrical conduit
1) Hot-dip/electro-gal.steel coil material; work temp: -25 to 120 degree.
2) All package meters available 15m,25m,30m and 100feet.
3) For general wiring installation provides for goos flexible bending & vibration.
4) The PVC jacket color: grey or black. LSOH PVC jacket material available.
Size & details:
INSIDE DIA. | OUTSIDE DIA. | ITEM | PITCH | GAL.COIL | MIN.BEND | STANDARD | ||
IN. | MM | MM | CODE | MM | THICKNESS | RADIUS | PACKAGE METERS | |
3/8" | 12mm | 16.30mm | RL-F60 | 4.70mm | 0.20mm | 50 Degree | 100 Meters | |
1/2" | 15mm | 19.70mm | RL-F61 | 5.70mm | 0.20mm | 65 Degree | 50 Meters | |
3/4" | 20mm | 25.10mm | RL-F62 | 6.40mm | 0.22mm | 75 Degree | 30 Meters | |
1" | 25mm | 31.00mm | RL-F63 | 8.70mm | 0.22mm | 100 Degree | 30 Meters | |
1-1/4" | 32mm | 40.30mm | RL-F64 | 10.50mm | 0.30mm | 125 Degree | 15 Meters | |
1-1/2" | 38mm | 45.80mm | RL-F65 | 11.40mm | 0.31mm | 150 Degree | 15 Meters | |
2" | 50mm | 57.10mm | RL-F66 | 11.40mm | 0.35mm | 175 Degree | 10 Meters | |
2-1/2" | 63mm | 70.80mm | RL-F67 | 14.20mm | 0.45mm | 200 Degree | 10 Meters | |
3" | 75mm | 85.90mm | RL-F68 | 14.20mm | 0.50mm | 225 Degree | 5 Meters | |
3-1/2" | 83mm | 95.55mm | RL-F69 | 14.20mm | 0.60mm | 230 Degree | 5 Meters | |
4" | 100mm | 108.50mm | RL-F70 | 14.20mm | 0.60mm | 275 Degree | 5 Meters |
