Payment & Shipping Terms:
|Steel Lot:||Hot Dip Steel Coil||Color:||Gray Or Black|
|Connector:||Use Liquid Tight Connector||Size:||1/2" TO 4"|
PVC Coated Metal Flexible Conduit,
0.013inch Liquid Tight Metal Flexible Conduit,
Hot Dip Steel Electrical Conduit

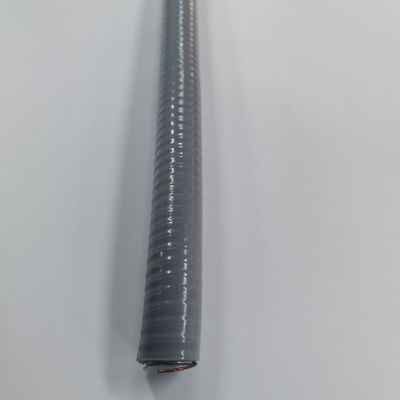

UL Listed Liquid Tight Metal Flexible Conduit Cooper Wire Insert Black Or Grey Colore 100feet Per Roll 0.013inch Coil
Liquid Tight Flexible Metal Conduit UL360 Listed
USL/CNL: Flexible Metal Conduit, Liquid-Tight, Trade Sizes 3/8(12), 1/2(16), 3/4(21), 1(27), 1-1/4(35), 1-1/2(41) and 2(53).
Direct burial stiffness test marking
Finished liquid-tight flexible metal conduit that complies with the test in Clause 7.2.9 may be surface marked "Direct Burial", "Burial", "Dir Burial", or "Dir Bur".
he results of this investigation indicate that the products evaluated comply with the applicable requirements
UL 360 Liquid Tight Metal Flexible Conduit Cooper Wire Insert Black or Grey Colore 100feet Per Roll 0.013inch Coil
(e) for liquid-tight flexible metal conduit, the dry ("60 ºC","75 ºC" or "105 ºC", as applicable), oil ("60 ºC","75 ºC", or in accordance with Clause 6.1.8), and low temperature rating (in accordance with Table 9) of the thermoplastic jacket; and
(f) the words "BONDING CONDUCTOR REQUIRED - CONDUCTEUR DE CONTINUITÉ DES MASSES OBLIGATOIRE".
*The equivalent French wording is «USAGE SPÉCIAL».
6.2 Marking on coils, reels, or cartons
Each coil, reel, or carton of flexible metal conduit and liquid-tight flexible metal conduit shall be tagged
or marked to indicate plainly the following:
a) the manufacturer's identification;
b) the date of manufacture or the dating period of manufacture. The dating period shall not exceed
any three consecutive calendar months. The date or dating period may be abbreviated or coded;
c) the metric designator trade size of the conduit, e.g., 16 (1/2);
d) for 10 (5/16) and 14 (7/16) flexible metal conduit, the words "SPECIAL PURPOSE"*;
e) for liquid-tight flexible metal conduit, the dry ("60 °C", "75 °C" or "105 °C", as applicable),
oil ("60 °C", "75 °C", or in accordance with Clause 6.1.8), and low temperature rating (in accordance
with Table 9) of the thermoplastic jacket; and
f) the words "BONDING CONDUCTOR REQUIRED - CONDUCTEUR DE CONTINUITÉ DES MASSES
* The equivalent French wording is «USAGE SPÉCIAL»
Canadian standard for Flexible Metal Conduit and Liquid-Tight Flexible Metal Conduit CSA C22.2 NO. 56-17:
1. Q: What kind of material you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, Zinc, etc.
2. Q: What kind of standard you are following?
A: We are producing following by UL standard, most popular around the world,
of course, we also have customized products.You can provide your specification.
3. Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.
4. Q: How many days can you deliver the order?
A: Normally after deposit or L/C 20-30 days, actually it depends on your request.
5. Q: What about the payment?
A: We can accept L/C, T/T, D/P and trusted payment methods.
6. Q: Do you provide samples?
A: yes, we can offer the standard product sample freely, but we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, FedEx, etc. to send samples, you can inform us in advance to prepare.
7. Q: Are you a trading company or manufacturing company?
A: Both we are, we have ten years experiences in foreign trading business and more than five years in electrical conduit industry. Of course, we are always expanding our business.
8. Q: How can you guarantee your products?
A: we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure every order carefully. In some special cases, we will give some discounts as a solution.
9. Q: How about your capability in manufacturing?
Based on reasonable price, good quality, great after service, and Workers' Passion and Effort, we are capable of manufacturing 6000 tons of steel conduit per year and 4000 tons of die casting and steel accessories anually.
Choosing us is the best choice.
2" 1" Liquid Tight Flexible Conduit Hot Dip Zinc Coated UL Listed Grey Black Pvc Jacket Metallic Inside
The Type Hi-Low Liquidtight Flexible Steel Conduit shall be formed from
a zinc coated galvanized low carbon steel strip having a uniform width and thickness. The construction shall be in accordance with UL 360. The finished Type Hi-Low LFMC dimensions shall be in accordance with Table 5.1 of UL 360 which is summarized in Table 3.
A rugged moisture, oil and sunlight resistant polyvinyl chloride (PVC) jacket shall be applied directly over the flexible metal conduit with a wall thickness in accordance with Table 4.1 of UL 360.
|LF-10||3/8"||With cotton wire,pvc jacket|
|LF-11||1/2"||With cotton wire,pvc jacket|
|LF-12||3/4"||With cotton wire,pvc jacket|
|LF-13||1"||With cotton wire,pvc jacket|
|LF-14||1-1/4"||With cotton wire,pvc jacket|
|LF-15||1-1/2"||With cotton wire,pvc jacket|
|LF-16||2"||With cotton wire,pvc jacket|
|LF-17||2-1/2"||With cotton wire,pvc jacket|
|LF-18||3"||With cotton wire,pvc jacket|
|LF-19||4"||With cotton wire,pvc jacket|
For protectiong the electrical wire, all the steel coil thickness exceeding 3.5mm to assure 190 ponds pressure, avoid the heavy item press flexible conduit abnormally. galvanized thickness eceeding 40 micrometer anti rust,Inside with the cotton wire to make the pvc flat and wiring easily.
1) Hot-dip/electro-gal.steel coil material work temp.-25 to 350 degree
2) All package meters available 15meter,25meter,30meter and 100feet.
3) The PVC part durable and reach to IP6 anti fire
Why Choose Ranlic Flexible Conduit
We are sending samples free of charges
All testing and the production in the our factory to assure the quality
When start buying our products,if destination markets growing fastly ranlic
will pay advertisment in customer's market to help our customer publishing
|1/2" 1.05mm thickness||gray pvc white or black as customer require|
|3/4" 1.30mm thickness|
|gray pvc white or black as customer require|
Descriptions of pvc electric fittings/pvc electrical conduit
1) Hot-dip/electro-gal.steel coil material; work temp: -25 to 120 degree.
2) All package meters available 15m,25m,30m and 100feet.
3) For general wiring installation provides for goos flexible bending & vibration.
4) The PVC jacket color: grey or black. LSOH PVC jacket material available.
Size & details:
|INSIDE DIA.||OUTSIDE DIA.||ITEM||PITCH||GAL.COIL||MIN.BEND||STANDARD|
|3/8"||12mm||16.30mm||RL-F60||4.70mm||0.20mm||50 Degree||100 Meters|
|1/2"||15mm||19.70mm||RL-F61||5.70mm||0.20mm||65 Degree||50 Meters|
|3/4"||20mm||25.10mm||RL-F62||6.40mm||0.22mm||75 Degree||30 Meters|
|1"||25mm||31.00mm||RL-F63||8.70mm||0.22mm||100 Degree||30 Meters|
|1-1/4"||32mm||40.30mm||RL-F64||10.50mm||0.30mm||125 Degree||15 Meters|
|1-1/2"||38mm||45.80mm||RL-F65||11.40mm||0.31mm||150 Degree||15 Meters|
|2"||50mm||57.10mm||RL-F66||11.40mm||0.35mm||175 Degree||10 Meters|
|2-1/2"||63mm||70.80mm||RL-F67||14.20mm||0.45mm||200 Degree||10 Meters|
|3"||75mm||85.90mm||RL-F68||14.20mm||0.50mm||225 Degree||5 Meters|
|3-1/2"||83mm||95.55mm||RL-F69||14.20mm||0.60mm||230 Degree||5 Meters|
|4"||100mm||108.50mm||RL-F70||14.20mm||0.60mm||275 Degree||5 Meters|
