Zhejiang Axwill Electrical Co.,Ltd.

Subcompany: Hangzhou Lianli Electrical Company Limited

Home ProductsGi Conduit Pipe

Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified

Certification
Good quality IMC Electrical Conduit for sales
Good quality IMC Electrical Conduit for sales
I'm Online Chat Now

Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified

China Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier
Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified supplier

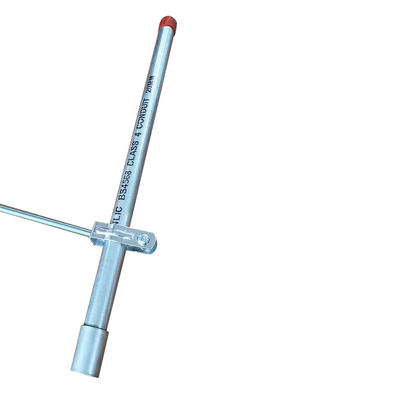

Large Image :  Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified

Product Details:

Place of Origin: HANGZHOU,CHINA
Brand Name: RANLIC
Certification: ISO9001
Model Number: RL15-20-4

Payment & Shipping Terms:

Minimum Order Quantity: 1*20gp container
Price: negotiation
Packaging Details: 100 lgths/Bundle
Delivery Time: 15
Supply Ability: 3000 TONS/MOUNTH
Contact Now
Detailed Product Description
C/W: Socket & Plastic Cap Material: Carbon Steel Coil
Type: Class 3 &Class 4 Size:: 20mm To 70mm
Color: Gray White Thread: BS4568 Standard
Thickness: 1.25mm To 1.60mm Cerficate: BSI Kitemark
High Light:

Thickness 1.60mm Gi Conduit Pipe

,

Class 4 Gi Conduit

,

Gi Conduit Pipe BSI Certified

GI Class 4 Conduit Pipe Hot Dip Galvanized 40 Mirco Meter Thickness 1.60mm Fix With Coupler And Cap BSI Certified

20MM TO 50MM CLASS 4  BSI KITEMARK Certified With Test Report









General:

Steel BS4568 G.I. conduit is manufactured from a mild steel tube,It has an accurate circular cross section,a uniformand wall thickness,a defect free interior surface.The finished threads,BS4568,conforms to the BS4568 Part 1:1970 BS EN  BS EN 50086-1:1994 & BS EN 61386,Each length of the conduit have the size,logo,product name print or engraved to make as installation instructions



Application:

Ranlic BS4568 conduit can be installed indoors or outdoors,in dry or wet locations,exposed or concealed,in all kinds of atmospheric conditions if use the standared thickness,the galvanized thickness exceeding 70 micro meter.it provides excellent mechanical protection for the conductors while reducing Electro-Magnetic Field exposure and shielding.



Features:

Q195 steel coil for mechanical strength,well controled internal beads(all can remove as seamless) essential for wire pulling and resistant to snagging The conduits are come with a coupler screwed on one end and a protective plastic cap at the other ends to prevent damage.Rigorous quality control procedures to ensure process and product consistency

  • Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
  • Electroplated couplings prevent zinc build-up
  • Designed for use with threaded connections
  • Brand Name: RANLIC
  • Length : 3.75 meters.
  • Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
  • Size: 3/4” , 1" ,  1-1/4”
  • Thickness: 1.3mm---1.6mm or according to customer's requirement

Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified

Characteriestic & Diamention:

NORMAL ITEM No. OUTSIDE DIAMETER NORMAL  THIN WALL  LENGTH W/O SMALL  BIG
SIZE MIN MAX THICKNESS THICKNESS COUPLING PKG (LGTHS) PKG (LGTHS)
20mm RL15-20-3 19.7mm 20.0mm 1.6±0.15mm 1.30mm 3.75 meters 10 100
25mm RL15-25-3 24.6mm 25.0mm 1.6±0.15mm 1.30mm 3.75 meters 10 100
32mm RL15-32-3 31.6mm 32.0mm 1.6±0.15mm 1.45mm 3.75 meters 10 50
38mm RL15-38-3 37.6mm 38.0mm 1.8±0.15mm 1.60mm 3.75 meters 5 30
50mm RL15-50-3 49.6mm 50.0mm 1.8±0.15mm 1.60mm 3.75 meters 5 30
63mm RL15-63-3 62.5mm 63.0mm 2.1±0.15mm 1.80mm 3.75 meters 1 10
70mm RL15-70-3 74.5mm 74.0mm 2.1±0.15mm 1.80mm 3.75 meters 1 10





Why Choose Ranlic Conduit Item:

1) High quality material ensures a finish conduit and fittings with superior properties
2) Manufactured by perfect molds and professtional engineer
3) Fitted perfectly with fittings(conduits) for the CNC threading machine
4) 10 years export experience to make sure the perfect shipment date and package
5) Always like to listening customers feedback for the conduit arrived to
   customer's warehouse to improving our service



Our Package:

Class 4 GI Conduit Pipe Thickness 1.60mm Fix With Coupler Cap BSI Certified





General:

BS4568 Part 1:1970 BS EN BS EN 61386-1:1994 & BS EN 61386,Steel BS4568 G.I. conduit is manufactured from a mild steel tube,It has an accurate circular cross section,a uniformand wall thickness,a defect free interior surface.The finished threads,BS4568,conforms to the,Each length of the conduit have the size,logo,product name print or engraved to make as installation instructions

Hot Dipped Galvanised to Class 4

AXWILL Class 4 conduit is Hot Dipped Galvanised, a process where steel products are coated with zinc by immersing them in a molten zinc bath at a temperature of approximately 450 °C. Trace elements of alloying metals such as lead, aluminium and nickel are included to improve fluidity and reduce dross. The alloys also assist in producing a bright silver appearance which becomes dull grey when exposed to the atmosphere. Hot Dipped Galvanising creates a proactive and self-repairing corrosion resistance; zinc reacts in the air and forms zinc carbonate (responsible for the dull grey in appearance), which protects the steel from corrosion.

Barton Class 4 conduit is routinely inspected for corrosion, strength and bending and is independently tested by an approved laboratory.

Handling and Storage

Galvanised conduit should be stored in dry conditions with good air circulation to prevent wet stain storage ("white rust"). However, should this occur it can be easily removed and does not affect corrosion resistance.

Binding materials used to make up bundles of conduit are not intended to be used when lifting this product, which should be handled only with approved slings.
